Omron Z-15GQ22-B General Purpose Basic Switch, Panel Mount Roller Plunger, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current OMRON Automation and Safety

Description

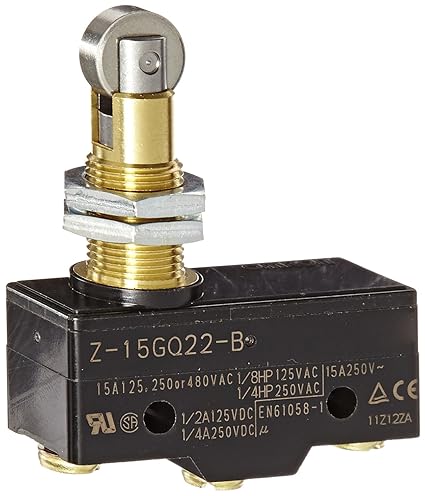

The Omron Z-15GQ22-B is a general-purpose basic switch with a panel-mount roller plunger design, ideal for use in various industrial and automation applications. With a 15A rated current and a 0.5mm contact gap, this switch is suitable for controlling circuits that require reliable and precise on/off switching, often in environments where space is limited or a compact design is required.

---

Pros of the Omron Z-15GQ22-B General Purpose Basic Switch

1. High Current Rating (15A):
   • The Z-15GQ22-B has a high current rating of 15A, making it suitable for a wide range of applications, including high-power circuits. This makes it a good choice for industrial automation, machine control, and motor switching tasks where higher currents are involved.
2. Panel Mount Design:
   • The panel-mount design allows for easy integration into control panels or machinery. This is particularly useful for applications that require secure and fixed mounting of the switch in enclosures, control boxes, or panels.
3. Roller Plunger Mechanism:
   • The roller plunger design is ideal for applications where the switch will be activated by a moving part. The roller mechanism reduces friction and wear by ensuring smooth actuation, making it more durable in repetitive motion applications like conveyor systems or robotic arms.
4. Compact and Space-Saving:
   • The Omron Z-15GQ22-B has a compact footprint, which makes it ideal for applications with limited space. It can be easily integrated into control systems without taking up much room, making it perfect for both small and large systems.
5. Screw Terminals:
   • The switch uses screw terminals for easy wiring and secure electrical connections. Screw terminals ensure reliable and long-lasting connections that can handle the stresses of industrial environments.
6. Wide Voltage Compatibility:
   • This switch can be used in a variety of circuits with different voltages. It’s designed to handle both AC and DC circuits within its rating, making it highly versatile in diverse control and automation applications.
7. Low Contact Gap (0.5mm):
   • With a 0.5mm contact gap, this switch is designed to minimize contact bounce and reduce the chances of false triggering. This feature provides consistent and reliable switching, especially in sensitive systems where precise actuation is critical.
8. Durability and Long Life:
   • The Omron Z-15GQ22-B switch is built to withstand repetitive operation, providing long service life (up to 10 million cycles depending on application). This durability makes it suitable for high-cycle environments.
9. Versatile for Different Applications:
   • Whether used in industrial machinery, consumer electronics, safety systems, or robotic applications, this switch is adaptable and can perform a variety of roles in different automation systems.
10. Reliable Actuation and Precision:

• The roller plunger mechanism provides consistent actuation with minimal wear, ensuring that the switch functions reliably even after repeated use. This is especially valuable in environments that require precise control and reliable switching.

---

Cons of the Omron Z-15GQ22-B General Purpose Basic Switch

1. Limited Environmental Protection:
   • The Z-15GQ22-B does not have an IP rating, meaning it is not waterproof or dustproof. In harsh industrial environments where the switch is exposed to moisture, dust, or chemicals, additional protective enclosures may be required.
2. Not Suitable for High-Speed Applications:
   • The switch is designed for standard on/off control and may not be ideal for high-speed switching applications. If the switch needs to operate in high-frequency or rapid cycling scenarios, a different type of switch, such as a solid-state relay or a high-speed switch, may be more appropriate.
3. Not Ideal for Extremely Low Current Applications:
   • With a 15A rating, this switch is ideal for high-power applications but may not be the best choice for very low-current circuits. In systems where very low current switching is required, a low-current switch would be a better fit.
4. Physical Wear on Roller Plunger:
   • The roller plunger design, while ideal for reducing friction, can still experience physical wear over time depending on the application. In environments with continuous or high-speed movement, the roller may wear out quicker than other types of switches.
5. Limited Switching Features:
   • The Z-15GQ22-B is a basic single-pole, single-throw (SPST) switch, meaning it only offers on/off functionality. For more complex control systems that require multiple switching states, or time delays, additional components (like relays or timers) would need to be integrated.
6. No Built-in Feedback Mechanism:
   • Unlike more advanced switches, the Z-15GQ22-B lacks feedback or diagnostic indicators (such as LEDs) to show the current state or health of the switch. In some systems where visual feedback is needed, this could be a drawback.
7. No Built-In Safety Features:
   • While the switch is durable and reliable, it does not have any built-in protection features like overcurrent protection, short-circuit protection, or overload warnings. You would need to ensure proper system design for safeguarding.
8. Manual Operation Only:
   • The Z-15GQ22-B is a mechanical switch, so it can only be operated manually or through mechanical actuation. If you need remote actuation or control, you may need to pair this switch with additional components such as relays, solenoids, or motors.

---

Q&A Section

Q: Can the Omron Z-15GQ22-B be used in outdoor or harsh environments?
A: The Z-15GQ22-B does not have an IP rating and is not specifically designed for moisture, dust, or chemical resistance. It can be used in indoor environments or areas with controlled conditions. If it needs to be used outdoors or in harsh environments, additional protection such as a weatherproof enclosure will be necessary.

Q: Is the Omron Z-15GQ22-B switch suitable for high-speed applications?
A: The Z-15GQ22-B is not ideal for high-speed or high-frequency switching. The switch is designed for standard on/off control and may not perform optimally in high-speed automation processes. For faster cycles, you might need a solid-state switch or a relay with high-speed capabilities.

Q: How long will the Omron Z-15GQ22-B last?
A: The Omron Z-15GQ22-B is rated for up to 10 million operations, so it should provide long-lasting performance under typical conditions. However, in very high-cycle applications, the roller plunger may experience wear over time, which could reduce its lifespan.

Q: Can I use the Omron Z-15GQ22-B for controlling motors or heavy-duty equipment?
A: Yes, the 15A rated current of the Z-15GQ22-B makes it suitable for controlling motors, solenoids, and other high-power equipment. It’s ideal for industrial machines, automation systems, and motor control circuits.

Q: Does the Z-15GQ22-B have any feedback indicators to show if it’s operating correctly?
A: No, the Z-15GQ22-B does not include built-in feedback or diagnostic indicators (like LEDs) to show whether it’s engaged or functioning correctly. For feedback, you may need to integrate additional components into your system.

Q: Is the Omron Z-15GQ22-B switch easy to install?
A: Yes, the screw terminals make it easy to wire, and the panel-mount design ensures it can be securely fixed in place. Installation is straightforward, but you should ensure that the switch is mounted correctly to avoid any potential damage during operation.

---
