Description

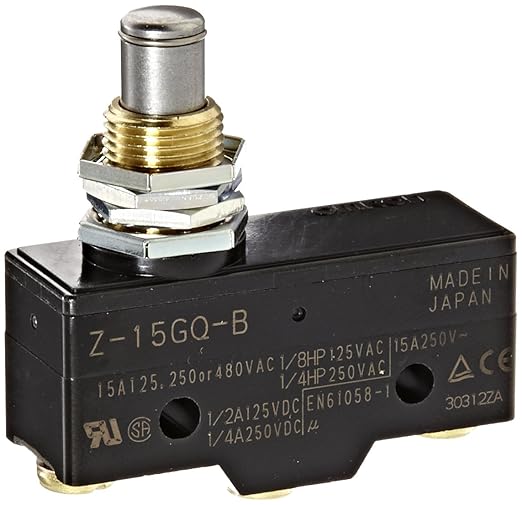

Here is a concise Pros and Cons Q&A for the Omron Z-15GQ-B General Purpose Basic Switch — a panel-mount plunger type switch rated for 15A, with a 0.5mm contact gap, screw terminals, and medium operating position.
✅ Pros
1. High Current Capacity
- Rated for up to 15A at 250VAC, making it suitable for demanding industrial or electrical loads.
2. Long Mechanical & Electrical Life
- Offers up to 10 million mechanical operations and 500,000 electrical cycles, ensuring long-term reliability.
3. Precise and Consistent Operation
- Features a 0.5mm contact gap and snap-action mechanism for quick, repeatable switching.
4. Sturdy Panel Mount Design
- Panel-mounted plunger with medium operating position allows for secure, stable installation in control panels.
5. Easy Wiring
- Screw terminal connections are simple to use, secure, and well-suited for maintenance or replacements.
6. Reliable Build Quality
- Uses silver alloy contacts for excellent conductivity and low contact resistance.
7. Compliance & Safety
- Certified under UL, CSA, CE, and TUV standards—meets international safety and quality requirements.
❌ Cons
1. No Environmental Protection (IP00)
- Not dustproof or waterproof—unsuitable for harsh or outdoor environments unless enclosed in a protected housing.
2. Limited Actuation Flexibility
- The plunger-only design lacks levers or rollers, which limits its use in some mechanical setups.
3. Requires Precise Actuator Alignment
- Due to short pretravel and overtravel tolerances, actuator alignment must be precise to avoid false triggers or wear.
4. Exposed Terminals
- No terminal cover included, so additional accessories may be needed for safety or protection in sensitive applications.
5. Manual Installation
- Screw terminals and mounting require manual assembly and torque precision—less convenient for quick-swap modular systems.
❓ Q&A
Q: What kind of applications is this switch ideal for?
A: It’s great for use in industrial machines, safety interlocks, position detection, and control panels where high current switching is required.
Q: Is this switch weatherproof or dustproof?
A: No. It’s rated IP00, meaning it has no protection against dust or water. Use it only in clean, dry environments, or add a protective enclosure.
Q: Can I use this in a low-voltage DC system?
A: Yes. It supports 6A at 30VDC, but check compatibility with your specific load.
Q: Is it replaceable or maintainable?
A: Yes. The screw terminals make it easy to remove and replace without soldering.
Q: Are there alternative actuator types available in this series?
A: Yes. The Omron Z series includes models with levers, rollers, and sealed variants depending on your mechanical needs.
Q: Can I mount this on a DIN rail?
A: Not directly. It’s designed for panel mounting; however, you can mount it inside an enclosure that is DIN-compatible.
🧾 Summary
| Feature | Rating | Comment |
|---|---|---|
| Current Rating | ★★★★★ | Strong 15A capacity for demanding loads |
| Durability | ★★★★★ | Long mechanical and electrical life |
| Environmental Rating | ★☆☆☆☆ | No protection—needs enclosure |
| Actuation Precision | ★★★★☆ | Snaps cleanly but needs precise setup |
| Installation | ★★★★☆ | Easy wiring, but not plug-and-play |
Would you like help comparing this model to Omron’s lever-type or sealed switches for outdoor or industrial use?
