Description

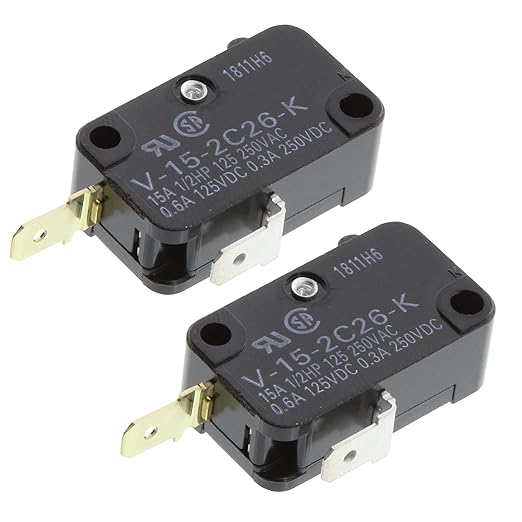

The Omron V-15-2C26-K is a miniature snap-action switch designed for various industrial automation applications. These switches are ideal for situations that require precise, reliable switching actions in a compact form factor. The V-15-2C26-K is known for its long lifespan, easy installation, and compact design, making it a go-to choice in many applications such as control panels, consumer electronics, or even robotics.
Pros of the Omron V-15-2C26-K Miniature Snap Action Switch
- Compact and Space-Saving Design:
- The miniature size of the V-15-2C26-K makes it suitable for applications where space is limited. Its small footprint allows it to be used in tight enclosures or systems that require precise control without taking up too much space.
- Snap-Action Mechanism:
- The snap-action feature ensures quick, precise switching with minimal delay. This feature provides reliable, consistent on/off action with a crisp, tactile response. It is especially useful for controlling machinery, circuits, or safety features in fast-paced environments.
- High Durability and Long Life:
- The Omron V-15-2C26-K switch is known for its long service life, rated for up to 1 million operations. This longevity ensures that the switch can withstand the demands of high-cycle operations, reducing the need for frequent maintenance or replacements.
- Versatile Application Range:
- Due to its compact size and reliable action, the V-15-2C26-K can be used in various industrial, consumer electronics, and automated systems. It is widely used in control panels, limit switches, robotic systems, and appliance controls, among others.
- Easy Installation and Integration:
- The Omron V-15-2C26-K comes with standard terminals that are easy to connect to. It’s designed for quick integration into existing systems without complex configurations, making it ideal for retrofitting or simple upgrades in industrial applications.
- Multiple Switching Options (SPDT):
- The V-15-2C26-K is a Single Pole Double Throw (SPDT) switch, allowing it to provide multiple switching functions. This flexibility enables users to integrate the switch into a variety of control or automation systems with a single device.
- Wide Voltage Range Compatibility:
- The V-15-2C26-K switch works effectively with a variety of voltage ratings and currents, making it compatible with a wide range of control systems. Whether you are dealing with low-voltage or medium-voltage circuits, it can handle a range of voltages within its rating.
- Low Operating Force:
- The switch is designed with low operating force, which makes it easy to activate and provides a sensitive and responsive action. This is especially useful in applications where slight changes or signals need to be detected or triggered with minimal physical input.
- Cost-Effective Solution:
- As part of the basic switch series, the V-15-2C26-K offers a cost-effective solution for automation and control tasks, providing good value for money without sacrificing reliability or performance.
Cons of the Omron V-15-2C26-K Miniature Snap Action Switch
- Limited Current Handling:
- The V-15-2C26-K switch is rated for relatively low currents (up to 15A). It is not suitable for applications that require switching higher currents or for heavy-duty tasks. If your system requires handling of high-power circuits, a different switch with a higher current rating might be needed.
- No IP Rating (No Protection from Water/Dust):
- Unlike IP-rated switches that are designed to withstand water, dust, or moisture, the V-15-2C26-K does not come with an IP protection rating. It may not be suitable for harsh environments with significant exposure to dust or moisture unless additional protective measures are taken.
- Not Rated for High-Speed Applications:
- Although the snap-action mechanism is reliable for most industrial tasks, the V-15-2C26-K might not be ideal for high-speed switching applications (e.g., high-frequency control circuits or relay-switching systems). The response time might not be fast enough for extremely fast cycles.
- Limited Environmental Resistance:
- This switch is designed for indoor use and doesn’t have enhanced resistance to factors like extreme temperatures, vibration, or harsh chemical exposure. For applications in outdoor settings or places with extreme conditions, other switches with better environmental resistance would be recommended.
- No Contact Ratings for Inductive Loads:
- While the V-15-2C26-K can handle resistive loads well, its performance with inductive loads (e.g., motors, solenoids) is limited. If you’re switching inductive loads, it’s best to verify the application’s requirements and consider using a switch that’s specifically designed for those loads.
- Limited Switching Features:
- The V-15-2C26-K is a basic, single-pole double-throw (SPDT) switch, meaning it does not offer advanced switching features such as multiple poles, timers, or complex circuits. If your application requires more advanced control or switching features, you might need a more specialized switch.
- No Feedback or Diagnostics:
- The V-15-2C26-K does not include diagnostic features like built-in LEDs, contact status feedback, or self-diagnostics. If you need to monitor the status of the switch in real-time, you may need to integrate additional monitoring systems.
Q&A Section
Q: Can I use the Omron V-15-2C26-K switch for outdoor applications?
A: The V-15-2C26-K is not IP-rated and does not offer built-in protection against dust or moisture, so it is best suited for indoor environments or situations where the switch will be protected from the elements. For outdoor applications or environments with moisture exposure, you should consider a switch with a higher environmental protection rating.
Q: Is the Omron V-15-2C26-K suitable for controlling large motors or high-power loads?
A: The V-15-2C26-K has a 15A current rating, which makes it suitable for smaller loads but not ideal for large motors or high-power circuits. If you need to switch heavy-duty loads (e.g., motors with high current draw), you’ll need to choose a switch rated for higher currents and designed for inductive loads.
Q: Can I use this switch in a high-frequency application?
A: The V-15-2C26-K is not designed for high-speed or high-frequency applications. Its mechanical switching is ideal for normal industrial automation tasks but may not meet the demands of systems that require frequent switching cycles in rapid succession.
Q: Does the Omron V-15-2C26-K have any built-in features for detecting switch failure or status?
A: No, the V-15-2C26-K is a basic mechanical switch without any built-in diagnostic features like LED indicators or status feedback. For real-time status monitoring, additional diagnostic equipment or external sensors may need to be added to your system.
Q: Is the Omron V-15-2C26-K switch suitable for use with PLC systems?
A: Yes, the V-15-2C26-K is compatible with PLC control systems since it has SPDT contacts, which can be wired to PLC inputs for binary on/off control. It is commonly used in control panels and automation systems where basic switching is required.
