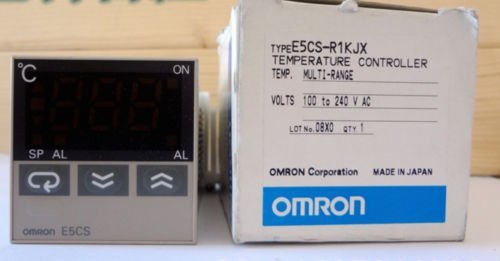

Here’s a Pros and Cons Q&A for the Omron E5CS-R1KJX Temperature Controller — a compact, relay-output, 1/16 DIN controller designed for basic industrial temperature control using thermocouples. It’s part of Omron’s widely used E5CS series.
✅ Pros
1. Compact 1/16 DIN Size (48 × 48 mm)
- Saves panel space and is compatible with standard panel cutouts.
- Plug-in design allows for quick installation and replacement.
2. Reliable Temperature Control (PID & ON/OFF)
- Offers both basic ON/OFF control and PID control with auto-tuning.
- PID control automatically adjusts parameters for stable temperature regulation.
3. Supports Thermocouple Inputs
- Compatible with common thermocouples such as K, J, and L types.
- Suitable for a broad range of heating and cooling applications.
4. Standard Relay Output
- SPDT relay rated for 250 VAC/3A allows for direct control of heaters or actuators.
5. Wide Power Supply Range
- Operates on 100–240 VAC, eliminating the need for a separate power converter.
6. One Alarm Output Included
- Provides a simple alarm output for high/low temperature limits or process deviations.
7. Good Accuracy
- Display accuracy of ±0.5% of full scale ±1 digit is sufficient for general-purpose industrial control.
8. Non-Volatile Memory
- Settings and parameters are stored in EEPROM, so they’re retained even after power loss.
❌ Cons
1. No Communication Interface
- Lacks RS-485, Modbus, or Ethernet — no remote monitoring or control.
- Not suitable for networked or IoT-connected systems.
2. Limited to Single Loop
- Can only control one temperature zone — no support for multizone or cascade control.
3. No Solid-State Output Option
- Only includes relay output — not ideal for fast-switching loads or noise-sensitive environments.
4. Basic Alarm Functionality
- Only one alarm output, with limited logic compared to more advanced controllers.
5. No Advanced Features
- Does not include ramp/soak profiling, multi-step programs, or logic control.
- Lacks front panel USB or parameter copy capabilities.
❓ Q&A
Q: What does the model number E5CS-R1KJX indicate?
- E5CS – Controller series
- R1 – SPDT Relay output
- KJ – Thermocouple input (Type K/J)
- X – Basic model (no communications)
Q: Can this controller handle both heating and cooling?
- It can handle heating or cooling, but not both simultaneously. Choose the control direction based on application.
Q: Is the controller front panel waterproof?
- Without accessories, the front panel has an IP50 rating. Optional covers can increase this.
Q: Can I use this for precision lab applications?
- Not ideal — it’s best suited for industrial or general-purpose applications where high-end accuracy or complex logic isn’t required.
🧾 Summary Table
| Feature | Rating | Notes |
|---|---|---|
| Control Modes | ★★★★☆ | PID + ON/OFF with auto-tuning |
| Input Support | ★★★★☆ | Supports common thermocouples |
| Output Type | ★★★☆☆ | Relay only — no SSR or analog |
| Alarm Functionality | ★★☆☆☆ | One basic alarm output |
| Communication | ★☆☆☆☆ | No networking or integration options |
| Usability | ★★★★☆ | Simple interface and plug-in design |
| Power Supply Range | ★★★★★ | Wide-range AC power input supported |
✅ Best For:
- Simple heating or cooling systems
- Small machinery or enclosures
- Low-cost, general-purpose temperature control
⚠️ Not Ideal For:
- Multi-zone or networked systems
- Applications requiring ramp/soak or remote adjustment
- Fast-response or precision control environments
