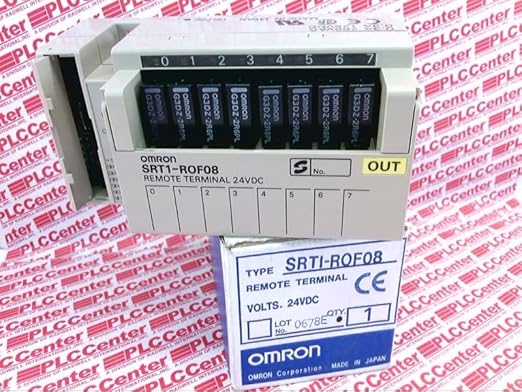

OMRON SRT1-ROF08 Output Module 8POINT SS Relay OMRON Automation and Safety

Description

The Omron SRT1-ROF08 is an 8-point SS (solid-state) relay output module designed for use in industrial automation systems. It is part of Omron’s SRT1 series, which focuses on modular I/O solutions for programmable logic controllers (PLCs). This module is typically used for controlling outputs in applications requiring precise, reliable switching with less mechanical wear.

Key Specifications:

• Output Type: 8-point Solid-State Relay (SS Relay)
• Output Rating: Typically 24-240V AC/DC, 1A per point
• Mounting Type: Din rail or direct mounting to a panel
• Input/Output Type: Digital (on/off) control signals
• Protection: Overload protection, short circuit protection, and built-in fuses
• Installation: Easy mounting with Omron PLCs, typically used for controlling electrical devices like motors, lamps, or solenoids
• Temperature Range: -25°C to +55°C (for most environments)

---

Pros:

1. Solid-State Technology:
   • Solid-state relays (SSRs) are more reliable and durable than traditional mechanical relays because they have no moving parts, which means they are less prone to wear and tear over time. This results in longer operational lifespans and less maintenance.
2. High Switching Speed:
   • Solid-state relays provide faster switching speeds compared to mechanical relays, making them suitable for applications where quick response times are critical.
3. Compact Design:
   • The 8-point module design allows it to manage multiple outputs in a compact form factor. This is ideal for saving space in control panels and reducing wiring complexity.
4. High Durability:
   • Solid-state relays are more robust than their mechanical counterparts, and they are less susceptible to shock and vibration. This makes them suitable for use in demanding industrial environments.
5. No Mechanical Contacts:
   • Since the relay operates using electronic switches, there are no physical contacts that can degrade over time. This reduces issues like contact bounce, wear, or failure, which are common with mechanical relays.
6. Wide Voltage Range:
   • The SRT1-ROF08 can handle a wide voltage range (typically 24-240V AC/DC), making it versatile enough to control various industrial equipment and devices, from small solenoids to larger motors and heaters.
7. Overload and Short-Circuit Protection:
   • The module includes built-in protection against overloads and short circuits, enhancing the reliability of the system and preventing damage to the output devices.
8. Easy Integration with Omron PLCs:
   • This module is designed for seamless integration with Omron PLC systems, simplifying configuration and reducing the need for third-party interface devices.
9. Energy Efficiency:
   • Solid-state relays tend to consume less energy compared to mechanical relays since they don’t require current to maintain mechanical states (like coils in mechanical relays).

---

Cons:

1. Limited Current Rating per Output (1A):
   • Each individual output point is rated for 1A, which could limit its use in controlling devices that require higher current, such as large motors or heavy industrial machinery. For those applications, a different output module with a higher current rating might be required.
2. Limited Switching Capacity:
   • While solid-state relays are fast and reliable, they may have a lower maximum switching capacity compared to larger mechanical relays. This can be a limitation in applications requiring high-power control.
3. Potential for Heat Buildup:
   • Solid-state relays generate heat when operating, especially at higher currents. Proper heat dissipation is necessary to avoid thermal shutdown. The module may require a cooling solution, particularly when controlling multiple outputs under heavy loads.
4. Compatibility with Non-Omron PLCs:
   • Although this module integrates seamlessly with Omron PLCs, it may not be as easily compatible with other brands of PLCs without additional adapters or interface modules, which could complicate integration in multi-brand systems.
5. Sensitive to Overvoltage:
   • Like most solid-state relays, overvoltage can damage the internal circuitry, so proper surge protection is necessary for long-term reliability.
6. Limited to Digital Switching:
   • The module only supports on/off (digital) switching, which means it cannot control analog devices that require variable output (e.g., variable frequency drives or dimmers). For those applications, an analog control module would be needed.
7. Potential for Higher Initial Cost:
   • While solid-state relays offer greater longevity and faster switching, they can be more expensive initially compared to mechanical relays, which could impact the overall cost of your control system.
8. No Isolation for High Power Loads:
   • Unlike traditional relays with built-in isolation, solid-state relays like the SRT1-ROF08 may require additional isolation equipment if controlling very high-power loads or dealing with high-voltage systems.

---

Questions to Consider:

1. What type of devices are you controlling?
   • If you’re controlling small to medium devices like solenoids, sensors, or small motors (within the 1A current rating), this module is ideal. But if your application involves larger equipment, you’ll need to consider a higher-capacity output module.
2. What is the operating environment like?
   • The SRT1-ROF08 operates well in industrial settings with temperature ranges from -25°C to +55°C, but if you’re dealing with extreme environmental conditions (high humidity, extreme temperatures, etc.), additional protection or a more specialized relay might be necessary.
3. Do you need analog control?
   • This module provides only digital switching. If your application requires variable control (e.g., adjusting motor speed or light intensity), you’ll need to look for an analog output module.
4. Are you using Omron PLCs?
   • If you’re working within the Omron ecosystem, this relay module integrates easily. However, for multi-brand PLC systems, you may need additional equipment for compatibility.
5. How critical is the load’s protection?
   • While the module includes basic overload and short-circuit protection, if your system has highly sensitive or expensive equipment, you may need more comprehensive protection measures.

---

Summary:

The Omron SRT1-ROF08 Output Module is an excellent choice for users looking for a compact, durable, and reliable solid-state relay output solution in industrial automation. It is ideal for controlling small to medium electrical loads with fast switching and long-lasting performance. However, its relatively low current rating, limited analog control capability, and potential heat dissipation issues may limit its suitability for high-power or high-precision applications.
