Description

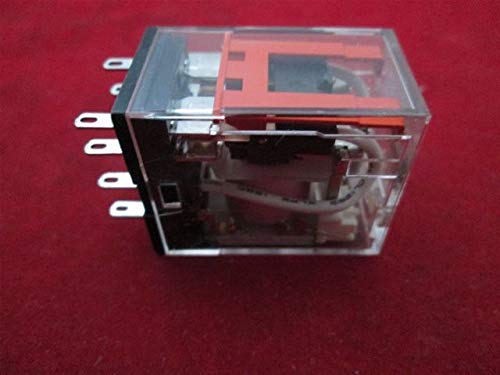

The Omron MY2N 110/120VAC Relay is a general-purpose relay designed for industrial and automation applications where reliable switching is needed. It is particularly popular for controlling electrical circuits, automation systems, and providing control in a variety of devices and equipment.
✅ Pros
1. Wide AC Voltage Range
- Designed for 110/120VAC, making it suitable for most industrial applications in regions using this standard AC voltage.
2. Dual Pole and Versatile Switching
- Features a DPDT (Double Pole Double Throw) configuration, which allows for controlling two circuits independently, adding flexibility in control systems.
3. High Load Capacity
- Capable of handling high loads (up to 10A), which makes it suitable for controlling larger equipment, machinery, or high-current circuits without concern for overheating or failure.
4. Compact and Easy to Mount
- The MY2N relay is relatively compact, which makes it easy to fit into control panels and tight spaces. It is also designed for DIN rail mounting, simplifying installation in industrial settings.
5. Long Lifespan
- Known for reliable long-term performance, the MY2N series is durable and can endure many switching cycles, reducing the frequency of replacements.
6. Low Power Consumption
- The relay operates with low coil power consumption, making it energy-efficient, and it’s easy to drive with standard control circuits.
❌ Cons
1. Limited to AC Voltage
- This relay is specifically designed for AC circuits. It cannot be used for DC applications without further adaptation or conversion.
2. No Built-in Protection
- Lacks features like overload protection or arc suppression, meaning additional components might be needed for higher safety and reliability in high-power or critical applications.
3. Limited Switching Speed
- While great for general purposes, it may not be suitable for high-speed switching or applications where fast, repeated switching is required (like in high-frequency control systems).
4. Requires Proper Coil Voltage Matching
- If not used within the specified 110/120VAC voltage range, the relay could malfunction, fail to energize properly, or even get damaged.
5. Mechanical Wear
- Like all electromechanical relays, it is susceptible to wear and tear due to its mechanical parts (like the contacts). Over time, this can lead to reduced reliability or failure, especially under heavy or constant load.
💬 Q&A
Q: What types of systems is the MY2N relay suitable for?
A: The MY2N relay is ideal for industrial automation systems, control circuits, lighting control, alarm systems, and any application where switching AC loads (up to 10A) is required.
Q: Can I use the MY2N relay in a DC-powered system?
A: No, the MY2N is designed for AC circuits only (110/120VAC). If you need a relay for DC applications, you’ll have to look for a DC-compatible version, like the MY2 DC relay series.
Q: Can I control high-power motors or large equipment with this relay?
A: Yes, the 10A rating allows it to control large motors, heaters, and other high-power devices, but always check your system’s load to ensure it is within the relay’s capacity.
Q: How often should I replace the MY2N relay?
A: The MY2N relay has a long lifespan when used within its rated load and conditions, but it’s a good practice to replace the relay every 5-10 years or if it begins to show signs of failure, such as poor switching or increased contact resistance.
Q: Does it have any diagnostic features?
A: The MY2N relay does not come with built-in diagnostics or status indicators. It’s purely a mechanical relay that requires external monitoring or testing if it fails to function correctly.
Q: Can I use multiple MY2N relays for complex control systems?
A: Yes, you can use multiple MY2N relays to create complex control systems with multiple independent switching functions. Just ensure that your power supply and control circuits are appropriately designed for the load and relay configuration.
