Description

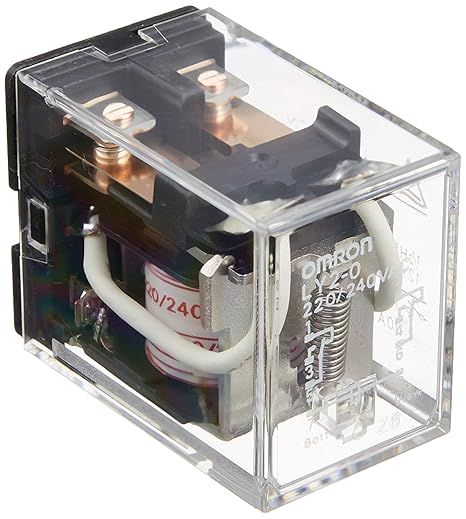

OMRON Power Relay LY2-0 AC220/240

The OMRON LY2-0 is an electromechanical relay designed for industrial applications that require reliable control of electrical circuits. It is widely used in automation, control systems, and other equipment where high-capacity switching is needed. This relay is specifically designed for AC220/240V and is part of the OMRON LY series, known for its performance, durability, and versatility.

---

Q1: What are the key benefits of the OMRON Power Relay LY2-0 AC220/240?

Pros:

1. High-Quality Build:
   • The LY2-0 relay is built with OMRON’s reputation for quality and reliability. It offers durable construction and can withstand harsh environments, making it ideal for industrial applications and high-power switching.
2. Strong Load Capacity:
   • This relay is designed to handle high-voltage loads (AC220/240V), making it suitable for a wide range of industrial control applications, such as motors, heaters, and lighting systems.
3. Versatile Applications:
   • The LY2-0 can be used in numerous automation tasks, including machine control, HVAC systems, security systems, and electrical panels. Its versatility makes it useful across various sectors like manufacturing, building automation, and energy management.
4. Easy Integration:
   • The relay features standard mounting and connection terminals, making it easy to integrate into existing control panels and systems. This simplifies installation and replacement in industrial setups.
5. Long Lifespan:
   • OMRON relays are designed for long operational lifespans, reducing the need for frequent replacements and downtime in machinery or automated systems.
6. Compact Design:
   • The LY2-0 relay has a compact size that allows it to fit into tight spaces within electrical panels or machinery, which is often important for space-limited installations.
7. Cost-Effective:
   • Compared to higher-end relays with complex features, the LY2-0 relay offers great value for its performance. It’s affordable yet reliable, especially for medium-to-high-power switching needs.
8. Easy to Replace:
   • The LY2-0 relay is designed to be easily replaceable in case of failure. Its wide availability and standard configurations make it a cost-effective solution for maintenance and repair.

---

Q2: What are the potential drawbacks or limitations of the OMRON Power Relay LY2-0 AC220/240?

Cons:

1. Mechanical Wear Over Time:
   • As an electromechanical relay, the LY2-0 contains moving parts that can experience wear and tear over time. This can lead to a decrease in performance or failure after extensive use, especially in applications where the relay is frequently cycled on and off.
2. Limited to AC Power:
   • The LY2-0 relay is specifically designed for AC220/240V power sources, meaning it is not suitable for use with DC circuits or other power types. If you need a relay for DC systems, you would need to consider a different model.
3. Size:
   • While the LY2-0 relay is compact, it is larger than solid-state relays (SSRs), which can be a drawback if space efficiency is a critical factor in your setup. Solid-state relays are generally smaller, more durable, and have no moving parts.
4. Manual Operation Required:
   • The LY2-0 is an electromechanical relay, so it requires a manual control signal for switching operations. This can be a disadvantage compared to more advanced relays that can be controlled by more sophisticated automation systems or remote management technologies.
5. Potential for Spark and Arcing:
   • The electromechanical nature of this relay means that during the switching process, there could be sparking or arcing between the contacts, especially under heavy loads. Over time, this can cause damage to the contacts, reducing the relay’s operational lifespan.
6. Lower Switching Speed:
   • Electromechanical relays like the LY2-0 typically have a slower switching time compared to solid-state relays (SSRs). If your application requires rapid switching, a solid-state alternative might be more suitable.
7. Limited Advanced Features:
   • The LY2-0 lacks the advanced features available in modern relays, such as remote control, programmable logic, or integrated fault detection. For applications that require these advanced capabilities, you may need to look for a more sophisticated relay.
8. Sensitivity to Overvoltage/Undervoltage:
   • Like other relays, the LY2-0 can be sensitive to voltage fluctuations. Overvoltage or undervoltage can potentially damage the relay’s contacts and internal components, making it less reliable if power surges are common in your environment.

---

Q3: How does the OMRON LY2-0 compare to other relays on the market?

Comparison with Other Relays:

1. OMRON vs. Other Brands:
   • OMRON relays, like the LY2-0, are often compared to relays from brands like Schneider Electric, Siemens, and Panasonic. The LY2-0 offers similar quality and reliability at a competitive price point. However, Siemens and Schneider Electric relays often come with more advanced features (such as overload protection and higher switching speeds) but at a higher cost.
2. Electromechanical vs. Solid-State Relays:
   • While electromechanical relays like the LY2-0 are more cost-effective, they are slower and have moving parts that can wear out. In contrast, solid-state relays (SSRs), which are more expensive, offer quicker switching, no mechanical parts, and higher reliability over time. However, SSRs are typically used in more specific applications, such as high-frequency switching.
3. Price and Value:
   • The LY2-0 is an affordable option when compared to other relays, especially in medium-duty applications. However, if your needs are more specialized (e.g., high-frequency switching, or compatibility with DC circuits), you may need to opt for a more advanced model.
4. Size and Form Factor:
   • The LY2-0 relay has a larger form factor compared to some solid-state relays or miniature relays from brands like Finder or Honeywell, which can be more space-efficient. However, the LY2-0 is still relatively compact compared to larger industrial relays, and its size may not be an issue for most applications.

---

Q4: How to ensure proper usage of the OMRON LY2-0 AC220/240 relay?

Best Practices:

1. Ensure Proper Installation:
   • Correct installation is crucial for optimal performance. Be sure to install the LY2-0 relay according to the manufacturer’s guidelines, and ensure it is properly wired and connected to avoid misfires or failures.
2. Avoid Overloading:
   • The LY2-0 relay can handle up to 10A at 240VAC. Avoid overloading the relay by exceeding its maximum load. Overloading can damage the contacts and lead to malfunction.
3. Check Voltage Ratings:
   • Ensure that the AC220/240V rating matches your application. Using the relay with a higher or lower voltage than rated can result in poor performance or failure.
4. Regular Maintenance:
   • Like all electromechanical components, regular maintenance, including contact inspection, is essential to prolong the life of the relay. Look for signs of wear, such as pitting or oxidation on the contacts.
5. Avoid Frequent Switching:
   • Frequent cycling of the relay can lead to contact erosion and reduced lifespan. Consider using a solid-state relay if rapid switching is required for your application.

---

Conclusion:

The OMRON LY2-0 AC220/240 relay is a reliable, cost-effective solution for industrial control applications requiring high-voltage switching. It provides a strong load capacity, versatility, and a long lifespan, making it suitable for various automation tasks. However, it is not without limitations, such as the mechanical wear over time, potential arcing, and slower switching speed. It’s best suited for users who need a basic, durable relay for general-purpose applications where performance and durability are essential, but advanced features are not a priority.
