Description

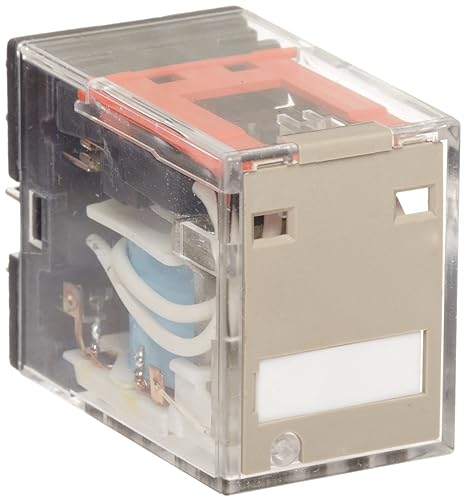

The Omron MY4N AC110/120 (S) is a versatile general-purpose relay widely used in industrial automation for switching applications. Here’s a breakdown of its pros and cons in a Q&A format:

Pros:

1. Quadruple Pole Double Throw (4PDT) Contacts:
   • Q: How flexible is the contact configuration in this relay?
   • A: The 4PDT (Quadruple Pole Double Throw) configuration provides significant flexibility for controlling multiple circuits simultaneously, making it ideal for applications requiring complex switching of various loads with a single relay.
2. LED Indicator for Status Monitoring:
   • Q: Is it easy to monitor the relay’s status?
   • A: Yes, the LED indicator provides clear visual feedback, showing whether the relay is energized or de-energized. This is especially useful for troubleshooting and ensuring the relay is functioning properly during operation.
3. Standard Coil Polarity and Plug-In Socket:
   • Q: Is installation and wiring straightforward?
   • A: Yes, the standard coil polarity and the plug-in socket design make installation and replacement of the relay easy. It also supports solder terminals, offering flexibility for different wiring setups.
4. Wide Voltage Range (110-120 VAC):
   • Q: Can this relay handle a wide range of voltages?
   • A: With a rated load voltage of 110 to 120 VAC, this relay is suitable for a variety of AC circuits, particularly in standard industrial and commercial environments where these voltages are common.
5. Good Load Handling (9.9 to 10.8 mA at 50 Hz):
   • Q: How well does the relay handle load currents?
   • A: The relay can handle 9.9 to 10.8 mA at 50 Hz and 8.49 to 9.2 mA at 60 Hz, which is sufficient for most standard AC applications, including controlling lights, motors, and other low-to-medium power loads.
6. Durable and Reliable:
   • Q: How long will this relay last?
   • A: The MY4N relay is designed for reliable long-term performance, even in demanding industrial environments. It’s built to handle a significant number of switching cycles and is resistant to wear and tear.

Cons:

1. Limited Current Handling (9.9 to 10.8 mA):
   • Q: Is this relay suitable for high-power applications?
   • A: The 9.9 to 10.8 mA current rating is relatively low, meaning it is not ideal for heavy-duty or high-power applications that require higher current handling. For those needs, you’d need a relay with a higher current rating.
2. No Advanced Features (e.g., Communication or Smart Monitoring):
   • Q: Does this relay have smart capabilities or advanced features?
   • A: No, the MY4N is a standard mechanical relay without features like communication interfaces (e.g., Modbus or Ethernet) or smart monitoring. If your application requires these, you may need a more advanced relay.
3. Limited to AC Voltage:
   • Q: Can this relay be used in DC circuits?
   • A: No, this relay is specifically rated for AC voltages (110-120 VAC). If you need to control DC circuits, you’ll have to look for a DC-rated relay instead.
4. No Built-in Protection for Inductive Loads:
   • Q: Does this relay have protection for inductive loads like motors?
   • A: The MY4N does not come with built-in protection like flyback diodes for controlling inductive loads such as motors or solenoids. For applications involving such loads, additional protective components may be needed to avoid damage.
5. Physical Size:
   • Q: Is the relay size suitable for tight spaces?
   • A: While the plug-in socket design is convenient, it may not be as compact as miniature relays, making it less suitable for extremely tight spaces. If you need a small form factor, you may want to explore more compact relay options.

Conclusion:

The Omron MY4N AC110/120 (S) is a reliable and versatile general-purpose relay, perfect for controlling multiple circuits simultaneously with its 4PDT contacts. It offers good flexibility, clear LED status indication, and easy installation with its plug-in socket design. However, it’s better suited for low-to-medium power applications due to its current handling range, and it lacks advanced features like smart monitoring or DC compatibility. It’s an excellent choice for standard AC applications but may not be suitable for high-power or complex systems requiring extra protection or monitoring features.
