Description

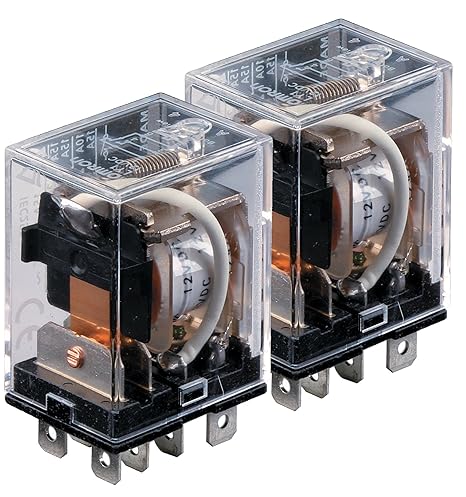

The Omron LY2-AC24 is a general-purpose relay designed for controlling a variety of devices in circuits with a 24 VAC load voltage. Here’s a breakdown of its pros and cons based on its specifications and common usage:
Pros of the Omron LY2-AC24 Relay
- Reliability & Durability:
- Omron is known for producing high-quality, reliable electronic components. The LY2-AC24 relay is durable and built to handle a range of applications, making it a trusted choice for industrial and commercial settings.
- Wide Range of Applications:
- It’s suitable for use in a variety of circuits that require switching of loads up to 10 A, making it versatile for tasks like controlling lights, motors, and other high-power devices.
- High Load Capacity:
- The relay can handle up to 10 A at 250 VAC, which makes it appropriate for moderate to high-power loads in both AC and DC systems.
- Compact Design:
- Despite its power capabilities, the LY2-AC24 is relatively compact, fitting easily into control panels and electrical enclosures where space is often limited.
- Low Power Consumption:
- With a coil current of 53.8 mA at 50 Hz and 46 mA at 60 Hz, the relay consumes minimal power in its operational state, making it energy-efficient.
- Industry Standard:
- The LY2 series is a well-known and widely used relay model, making it easy to source replacements or spares when needed.
- Overload Protection:
- It comes with built-in overload protection, which ensures the relay’s longevity and prevents damage due to short-circuiting or excessive load conditions.
Cons of the Omron LY2-AC24 Relay
- Size Relative to Other Relays:
- Compared to newer, smaller relays or solid-state relays, the LY2-AC24 might be considered bulky for certain applications, especially where space is constrained.
- AC Voltage Only:
- This relay is designed for AC voltage circuits (24 VAC), so it wouldn’t be suitable for DC applications without a specific DC relay model, limiting its versatility in mixed-voltage environments.
- Mechanical Wear:
- Since it’s a mechanical relay, the LY2-AC24 has moving parts that can wear out over time, especially in high-cycle applications. This might make it less suitable for heavy-duty or very high-frequency switching operations.
- Lower Frequency Range:
- It operates at standard 50 Hz or 60 Hz frequencies, which is typical for general applications but not suitable for systems requiring high-frequency operation.
- Relatively Higher Coil Voltage:
- For lower-voltage AC applications, the 24 VAC coil voltage may be too high or impractical, especially if you’re looking for a relay with a lower control voltage.
- No Built-in Protection Against Overcurrent:
- While it can handle a relatively high load current, it doesn’t have built-in overcurrent protection on the contacts themselves. External protection (like fuses or circuit breakers) would still be required in high-power applications.
Q&A Section
Q: Can I use the Omron LY2-AC24 relay in both AC and DC circuits?
A: No, the LY2-AC24 is specifically designed for AC circuits (24 VAC). If you’re working with a DC application, you’d need to look for a different relay model designed for DC load switching.
Q: How many times can I switch with this relay before it starts to wear out?
A: The mechanical parts of the LY2 relay will wear with repeated use. While the typical mechanical life expectancy of the relay is around 1 million cycles, high-frequency switching can reduce this lifespan. If your application requires constant switching, consider a solid-state relay (SSR) for longer life.
Q: Is this relay suitable for controlling motors?
A: Yes, the LY2-AC24 relay is commonly used in motor control applications. Its high switching capacity (up to 10 A) makes it suitable for moderate motors and other inductive loads. However, for large motors or high inrush currents, you might need a relay rated for even higher loads or designed specifically for motor applications.
Q: What is the maximum current rating of the LY2-AC24 relay?
A: The LY2-AC24 is rated for a 10 A switching capacity at 250 VAC for resistive loads. It is important to always check the load type (resistive, inductive, etc.) to ensure you’re operating within safe limits.
Q: Is the LY2-AC24 compatible with other Omron relay models?
A: Yes, Omron’s relays are generally interchangeable, but you should always confirm the pin configuration and voltage ratings to ensure compatibility. If you’re looking to replace or expand a relay system, other relays in the LY2 series (with different voltages or configurations) are often suitable substitutes.
