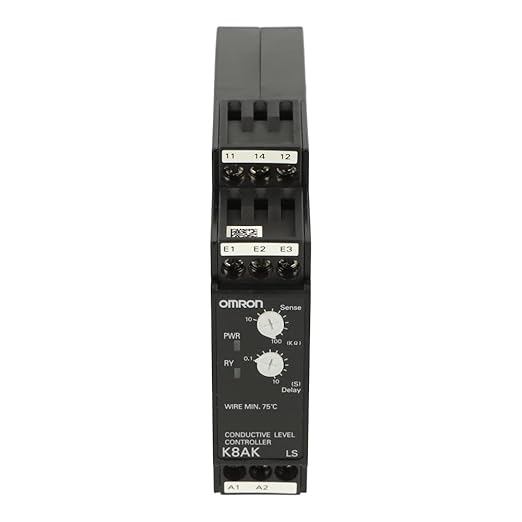

OMRON K8AK-LS1 24VAC/DC APPLICABLE AS A FLOATLESS SWITCH, CONDUCTIVE LEVEL CONTROLLER, EASY WIRING WITH FERRULES, FOR APPLICATION TO A WIDE RANGE OF LIQUIDS, SELF-HOLDING ON OR OFF OUTPUTS, SENSITIVIT OMRON Automation and Safety

Description

The Omron K8AK-LS1 is a Floatless Level Switch designed for use as a conductive level controller for monitoring the levels of various liquids in industrial applications. It is 24VAC/DC powered and offers easy wiring with ferrules, making installation quick and simple. This model is especially suitable for non-floating liquids, where traditional float-based level sensors may not be practical.

Key Specifications:

• Model: K8AK-LS1
• Power Supply: 24VAC/DC
• Output Type: Self-holding ON/OFF outputs
• Applicable Liquids: Works with a wide range of conductive liquids (e.g., water, acids, and other conductive solutions)
• Sensitivity Adjustment: Adjustable sensitivity to detect different liquid types
• Mounting: Designed for easy mounting in tanks or vessels for liquid level monitoring
• Wiring: Easy wiring with ferrules for secure electrical connections
• Output Relay: Typically used with a relay or directly connected to control systems for on/off switching of pumps or valves.
• Self-holding Function: Provides stable and reliable level detection, holding the output until the liquid level changes sufficiently.

---

Pros:

1. Floatless Operation:
   • The K8AK-LS1 uses conductivity for detecting liquid levels instead of mechanical float mechanisms, making it ideal for non-floating liquids or environments where traditional float switches would be prone to failure or contamination.
2. Wide Range of Liquids:
   • It can detect the levels of conductive liquids, including water, acids, salts, and other conductive solutions. This broad compatibility makes it versatile across a wide range of industries, including chemical processing, water treatment, and food and beverage.
3. Easy Installation:
   • The use of ferrules for wiring makes installation quick and secure, reducing wiring errors and simplifying the connection process. This is particularly helpful for operators who want to minimize setup time and ensure reliable connections.
4. Adjustable Sensitivity:
   • The adjustable sensitivity allows for fine-tuning based on the type of liquid and the specific requirements of the application, ensuring accurate level detection even with varying liquid conductivities.
5. Self-Holding ON/OFF Outputs:
   • The self-holding ON/OFF output feature ensures that the output remains stable once the liquid level has been detected, preventing false triggers due to minor fluctuations. This feature is beneficial for applications that require continuous monitoring and a stable control output.
6. Compact and Reliable:
   • The compact design allows the K8AK-LS1 to be easily integrated into existing systems with minimal space requirements. Its reliable performance in a range of industrial settings reduces the need for maintenance and ensures consistent operation.
7. Wide Power Supply Range (24VAC/DC):
   • The 24VAC/DC operating voltage is standard in many industrial environments, making it compatible with most control systems, reducing the need for specialized power supplies or adapters.
8. No Mechanical Parts:
   • Since it operates electronically, there are no moving mechanical parts like in float switches, making it more durable and less prone to wear and tear. This leads to lower maintenance needs and longer lifespan.
9. Application Flexibility:
   • The K8AK-LS1 is designed for a wide range of applications, including level detection in tanks, vessels, or pipes. It can be used for pump control, overflow protection, or process monitoring in various industries.

---

Cons:

1. Limited to Conductive Liquids:
   • The K8AK-LS1 only works with conductive liquids. It cannot detect non-conductive liquids (e.g., oils or pure solvents), so it may not be suitable for applications where these types of liquids are present.
2. Requires Calibration for Specific Liquids:
   • While the sensitivity is adjustable, some liquids may require fine-tuning of the settings to ensure reliable detection. Non-standard liquids may need careful calibration for accurate performance, and this could require additional setup time.
3. Potential Interference from Environmental Factors:
   • While the sensor is designed for conductive liquids, its performance can be affected by high temperatures, foam, or air bubbles. If the liquid is highly foamy or if air bubbles are present, they may cause inconsistent readings or trigger false positives.
4. Limited Output Options:
   • The K8AK-LS1 has self-holding ON/OFF outputs, which may not be suitable for all applications. If more sophisticated output signals (such as analog outputs or communication protocols like Modbus or Profibus) are required, you would need to consider a more advanced level sensor.
5. Temperature Range Limitations:
   • The temperature tolerance of the K8AK-LS1 may not be suitable for extreme temperatures. If you need to detect liquid levels in environments with temperatures that exceed the sensor’s specified range, the sensor may not perform optimally, and you would need to check the product’s datasheet for the exact operating temperature limits.
6. Not Ideal for Very Low Conductivity Liquids:
   • For liquids with very low conductivity (like ultra-pure water or some oils), the sensor’s performance may degrade, or it may fail to detect the liquid level accurately. For such applications, a more specialized level sensor may be needed.
7. Sensitivity to Liquid Composition:
   • The sensor may struggle to accurately detect levels if the composition of the liquid changes frequently. For example, if the concentration of conductive elements (salts, minerals) fluctuates, it could affect the accuracy of the sensor, leading to false readings.

---

Questions to Consider:

1. What type of liquids are you monitoring?
   • The K8AK-LS1 is designed for conductive liquids. If you’re working with non-conductive liquids (like oils, solvents, or pure water), this sensor will not work, and you will need a different type of level switch.
2. Is the environment prone to high temperatures or foam?
   • The sensor’s performance may be compromised by high temperatures or foam in the liquid. If your application involves these conditions, consider ensuring the sensor’s specifications meet the demands or explore alternatives like capacitive or radar-based sensors.
3. Do you need a relay-based ON/OFF output, or more sophisticated control?
   • The self-holding ON/OFF outputs are great for many applications but may be insufficient for those requiring continuous level feedback or analog output. If you need more complex outputs, consider sensors with 4-20mA output or digital communication interfaces.
4. How critical is calibration for your process?
   • If your process requires frequent recalibration or involves changing liquids (with varying conductivities), you’ll need to carefully monitor and adjust the sensor. This may require more attention during setup and maintenance.
5. Do you have space constraints?
   • The compact design of the K8AK-LS1 is an advantage in installations with limited space. However, make sure it fits into the available space and the mounting options are compatible with your tank or vessel.

---

Summary:

The Omron K8AK-LS1 is a floatless level switch with conductive level sensing ideal for detecting levels in conductive liquids like water and acids. Its easy wiring with ferrules, adjustable sensitivity, and self-holding ON/OFF output make it a reliable and flexible solution for a wide range of industrial applications. It’s well-suited for level control in chemical processing, water treatment, and food and beverage industries.

However, its limitations with non-conductive liquids, foam, or low conductivity liquids and its simple ON/OFF output may not be sufficient for all applications. Additionally, temperature and liquid composition can impact its reliability in certain conditions. If you need a sensor for conductive liquids in an easy-to-install system with ON/OFF control, this is a strong option.
