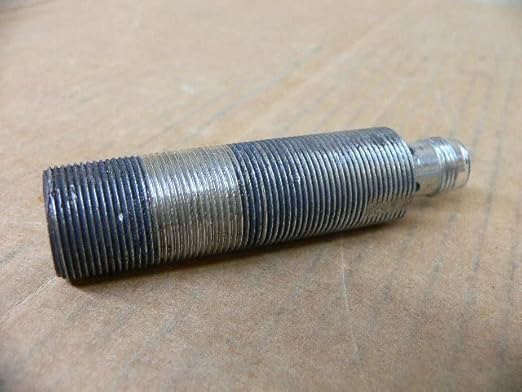

Omron Industrial Automation Proximity Sensor, 8Mm, Pnp, M18 – E2A-M18LS08-M1-B1 OMRON Automation and Safety

Description

The Omron E2A-M18LS08-M1-B1 is a Proximity Sensor designed for industrial automation and safety applications. It is a M18 series inductive proximity sensor with an 8mm sensing distance, PNP output, and a cylindrical M18 body. This type of sensor is used for detecting metallic objects without physical contact, making it reliable for a wide variety of machine and factory automation applications.

Key Specifications:

• Model: E2A-M18LS08-M1-B1
• Type: Inductive Proximity Sensor
• Sensing Distance: 8mm (standard)
• Output Type: PNP (Sourcing)
• Shape/Size: M18 cylindrical (18mm diameter)
• Operating Voltage: 10–30 VDC
• Output Current: Max. 200mA
• Response Time: Fast response (typically around 1ms)
• Protection Rating: IP67 (dustproof and waterproof)
• Body Material: Stainless steel housing
• Temperature Range: -25°C to +70°C
• Mounting: Threaded (for easy installation)

---

Pros:

1. Compact and Robust Design (M18 Size):
   • The M18 cylindrical design is a standard size in the industry, offering easy installation in a wide variety of applications. It can be mounted in tight spaces, and its stainless steel housing ensures durability in industrial environments.
2. Inductive Sensing:
   • As an inductive proximity sensor, it detects the presence of metallic objects without physical contact. This makes it ideal for detecting metal parts in machines, conveyors, or manufacturing processes where contact-based sensing is not practical.
3. 8mm Sensing Distance:
   • While 8mm may seem small, it is sufficient for many industrial applications where detecting objects within a short distance is necessary. Its sensing distance is ideal for close-range detection where high precision is important.
4. PNP Output (Sourcing):
   • The PNP (sourcing) output is ideal for systems that require a positive switch when the sensor detects an object. This makes it compatible with a wide range of PLCs, controllers, and automation systems that use PNP input configurations.
5. IP67 Protection Rating:
   • With an IP67 rating, the sensor is fully dustproof and waterproof to a certain extent, making it suitable for harsh industrial environments where exposure to dust, dirt, water, and other contaminants is common. This ensures long-term reliability and consistent performance.
6. Wide Operating Temperature Range:
   • The sensor can operate in a broad temperature range of -25°C to +70°C, which makes it versatile for various environments, including hot or cold factory floors and outdoor industrial settings (as long as the sensor is protected from extreme weather conditions).
7. Fast Response Time:
   • With a fast response time (typically 1ms), this sensor can be used in high-speed applications such as automated manufacturing or assembly lines, where quick detection and response are critical.
8. Stainless Steel Housing:
   • The stainless steel housing makes the sensor robust and resistant to damage from physical impacts or harsh chemicals. It’s a great choice for environments where mechanical stress or exposure to corrosive materials could otherwise degrade other sensor types.
9. Cost-Effective:
   • The E2A-M18LS08-M1-B1 is reasonably priced for an M18 inductive sensor with high durability and reliable performance, making it a great option for applications that require good value for money in industrial automation.

---

Cons:

1. Limited Sensing Distance (8mm):
   • The 8mm sensing distance is relatively short, which may not be sufficient for certain applications requiring long-range detection. For detecting larger objects or objects at a greater distance, a sensor with a longer sensing range (e.g., 12mm or 20mm) would be more appropriate.
2. PNP Output Only:
   • The sensor uses a PNP output (sourcing), which may not be compatible with systems that require NPN (sinking) outputs. If your control system only accepts NPN signals, an additional conversion or a different sensor would be required.
3. Limited to Metallic Objects:
   • As an inductive sensor, it is only sensitive to metallic objects. It cannot detect non-metallic materials such as plastic, wood, or glass, which can limit its use in applications where those materials are involved.
4. No Analog Output:
   • The E2A-M18LS08-M1-B1 provides only a binary on/off output, meaning it will trigger when an object is detected or not detected. If your application requires detailed or analog feedback (e.g., for position sensing or variable distances), this sensor might not be suitable.
5. Single-Sided Detection:
   • The sensor is designed for single-sided detection (one direction), meaning it will detect objects approaching from one side. In some applications where detection from multiple directions is needed, you would need to use additional sensors or choose a different sensor type.
6. Not Suitable for High-Speed Moving Objects:
   • While the response time is fast, the 8mm sensing range might make it less effective in applications where high-speed moving objects need to be detected over a longer range. If you’re working with very fast-moving metal objects or need long-range detection, a more advanced or specialized sensor would be needed.
7. Fixed Sensing Range:
   • The sensing range of 8mm is fixed and cannot be adjusted. If you need to change the detection distance based on different application requirements, you’d have to select a sensor with adjustable range or different models.

---

Questions to Consider:

1. What is the required sensing distance for your application?
   • If your application requires detecting objects at a longer range, the 8mm sensing distance of the E2A-M18LS08-M1-B1 might be limiting. In that case, you might need to consider a sensor with a larger sensing range (e.g., 12mm, 18mm, or 30mm).
2. Do you need to detect materials other than metals?
   • The E2A-M18LS08-M1-B1 is inductive and only detects metallic objects. If your application involves non-metallic materials like plastic or wood, you would need a different type of sensor, such as a capacitive or photoelectric sensor.
3. Is your system using PNP or NPN inputs?
   • If your automation system uses NPN inputs (sinking), you might need to look for an NPN version of this sensor or use an interface to convert the signal from PNP to NPN.
4. What is the environment like?
   • If you are working in a harsh industrial environment with exposure to dust, moisture, or other contaminants, the IP67 rating and stainless steel housing will ensure the sensor’s durability. However, for extreme environmental conditions, you might want to verify that the sensor can withstand other factors like extreme temperatures, vibrations, or exposure to chemicals.
5. Are you looking for analog feedback or just a simple on/off signal?
   • The E2A-M18LS08-M1-B1 provides binary output (on/off) but lacks analog output. If your application requires more detailed sensing (e.g., measuring distance or gradual changes), you would need a sensor with an analog output or more advanced functionality.

---

Summary:

The Omron E2A-M18LS08-M1-B1 is a compact and durable inductive proximity sensor with an 8mm sensing distance and PNP output, making it suitable for detecting metallic objects in industrial automation systems. Its IP67 rating, stainless steel housing, and fast response time make it ideal for use in harsh environments, and its cost-effectiveness makes it a popular choice in various industrial applications.

However, its limited sensing range, PNP-only output, and inability to detect non-metallic objects are potential limitations. It is best suited for short-range metallic object detection in controlled environments where the size and material of the object are known.

If you’re looking for a proximity sensor for basic metal detection with reliable performance, this model is a solid choice. Would you like help exploring other proximity sensors with different ranges or outputs? Or maybe more info on how to integrate this sensor into your system?
