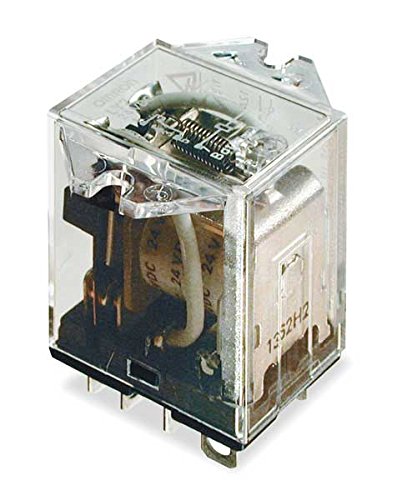

Here’s a detailed Pros and Cons Q&A for the OMRON LY2F-AC110/120 Industrial Power Relay — a classic DPDT plug-in relay with a 120 VAC coil, 10A contact rating, and versatile applications in industrial automation.
✅ Pros
1. Versatile DPDT Contact Configuration
- Features Double Pole Double Throw (DPDT) contacts — supports two independent circuits with both normally open (NO) and normally closed (NC) options.
- Ideal for control logic, interlocking, and switching AC/DC loads.
2. Standard 120 VAC Coil Voltage
- Compatible with standard US industrial AC power — no need for additional step-down transformers for control voltage.
3. Plug-In Design
- Quick-swap plug-in format simplifies maintenance and relay replacement.
- Compatible with PYF-series sockets, allowing for DIN rail or panel mounting.
4. Reliable 10A Switching Capacity
- Handles up to 10A resistive load — suitable for lights, heaters, solenoids, and general-purpose control circuits.
5. Transparent Housing
- Clear case lets you visually inspect contact position and operation status.
6. Mechanical Indicator (in F-type relays)
- Includes a manual test button or flag indicator, making it easy to confirm relay operation during maintenance.
7. Industrial-Grade Durability
- Long electrical and mechanical life — typically up to 500,000 operations under rated load, and several million mechanically.
❌ Cons
1. No Built-in LED Indicator
- This model does not include an LED coil indicator — requires external monitoring to confirm activation (unless socket with LED is used).
2. Mechanical Contact Wear
- As a mechanical relay, it’s subject to contact degradation over time, especially with inductive loads.
3. Relatively Large Footprint
- Larger than solid-state or slim relays — may be bulky for high-density panel layouts.
4. AC Coil Only
- Rated strictly for 110/120 VAC coil operation — not suitable for DC control logic without a DC-compatible variant.
5. No Environmental Sealing
- Not sealed against dust, moisture, or corrosives — should be used in clean, enclosed control environments.
❓ Q&A
Q: What does DPDT mean in this context?
A: Double Pole Double Throw means the relay has two switches, each with both NO and NC contacts — allowing you to switch or toggle two circuits simultaneously.
Q: Can I use this relay on a DIN rail?
A: Yes — when plugged into a PYF-series socket that supports DIN rail mounting.
Q: What types of loads can it switch?
A: It handles resistive loads up to 10A at 250 VAC or 30 VDC. Suitable for solenoids, lighting, and small motors (within rated specs).
Q: Is there a way to check if the relay is energized?
A: The transparent housing and optional mechanical flag can give a visual clue, but there’s no built-in LED unless the socket provides one.
Q: What socket should I use with this relay?
A: Use OMRON PYF08A or PYF08A-E sockets for plug-in mounting. Choose versions with LEDs or surge suppression if needed.
🧾 Summary
| Feature | Rating | Notes |
|---|---|---|
| Load Switching Capacity | ★★★★☆ | Handles 10A, reliable for general loads |
| Ease of Maintenance | ★★★★★ | Plug-in with optional test flag |
| Coil Voltage Versatility | ★★★☆☆ | 120 VAC only — no DC coil in this model |
| Panel Space Efficiency | ★★★☆☆ | Larger than compact relays |
| Diagnostics & Indication | ★★☆☆☆ | No built-in LED; use socket with LED if needed |
| Installation Flexibility | ★★★★★ | Works with DIN or panel mount sockets |
The Omron LY2F-AC110/120 is a trusted, industrial-standard plug-in relay that offers durability, versatility, and ease of maintenance. It’s a great fit for general control panels, HVAC systems, and automation circuits where AC control voltage and moderate switching loads are involved.
