Description

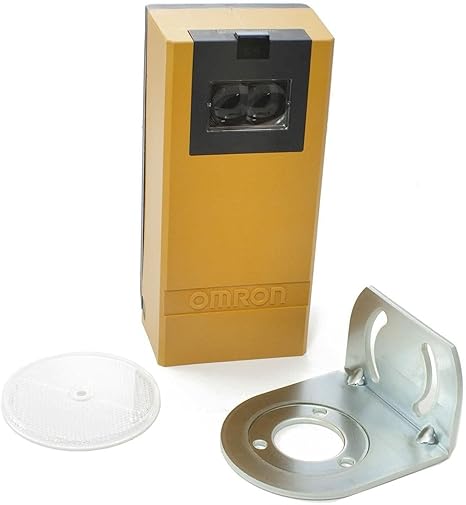

The Omron E3K-R10K4 Photoelectric Sensor is part of Omron’s E3K series of photoelectric sensors, which are used in a wide range of industrial applications to detect objects without physical contact. These sensors use light to detect the presence or absence of objects and can be employed in automated systems for precise and reliable operation.
Pros of the Omron E3K-R10K4 Photoelectric Sensor
- High Detection Range:
- The E3K-R10K4 sensor offers a high detection range of up to 10 meters (depending on the type of object being detected and its surface). This is beneficial for applications where the detection needs to be done over longer distances without compromising accuracy.
- Robust and Durable Design:
- Designed to withstand harsh industrial environments, the E3K-R10K4 is built to be shock-resistant and vibration-resistant, making it highly reliable in rugged settings.
- With an IP67 rating, the sensor is dust-tight and protected against water immersion, making it suitable for environments with exposure to moisture or particulates.
- Versatile Detection Modes:
- The sensor can operate in diffuse, retro-reflective, and through-beam modes, offering flexibility for various detection needs in industrial automation and safety systems. This versatility allows it to be applied in many different types of applications.
- Reliable Detection Performance:
- The E3K-R10K4 utilizes advanced optical technologies that provide consistent, accurate detection even in challenging conditions (e.g., poor lighting, reflective surfaces, or transparent objects).
- Long-term stability and high repeatability ensure that the sensor maintains accuracy and reliability over time.
- Compact and Lightweight:
- Despite its robust construction, the sensor has a compact size and is relatively lightweight, allowing for easy integration into systems where space is limited. It’s designed to be flexible in mounting and fitting into various installations.
- Easy Installation:
- The E3K-R10K4 comes with simple wiring and mounting options, which makes installation fast and efficient. This is ideal for industrial setups where downtime and installation complexity are critical factors.
- Cost-Effective:
- As with many Omron products, the E3K-R10K4 is reasonably priced considering its high performance, durability, and reliability in industrial environments. It provides a good balance of cost and functionality for industrial automation projects.
Cons of the Omron E3K-R10K4 Photoelectric Sensor
- Limited Advanced Features:
- While highly reliable and efficient, the E3K-R10K4 does not offer some of the advanced features found in more premium sensors, such as integrated diagnostics, IO-Link connectivity, or advanced configuration options. If you need a sensor with more complex features, you might have to look at higher-end models.
- Sensitive to Environmental Conditions:
- Although it has an IP67 rating, certain extreme conditions (like extreme temperatures, high levels of vibration, or aggressive chemicals) can still affect the sensor’s performance. If used in environments with frequent environmental fluctuations, additional protection or more specialized sensors might be necessary.
- Limited Range with Transparent Objects:
- While the sensor works well with opaque objects, it may have a reduced detection range or may struggle with transparent objects. This is a limitation in applications where detecting clear or glossy materials is required.
- No Digital Output:
- The E3K-R10K4 provides an analog output (like a voltage or current signal), but lacks the more modern digital output options that some newer sensors provide. If your system is designed to handle digital signals (e.g., for precise feedback control), this could be a limitation.
- Not Suitable for Very Fast Detection:
- The sensor is effective for standard-speed detection but may not be suitable for high-speed applications where rapid object movement is involved. For such cases, high-speed sensors designed for fast detection might be needed.
- No Built-in Temperature Compensation:
- While the sensor is designed for industrial environments, it doesn’t feature built-in temperature compensation. Extreme temperature variations could affect detection accuracy, especially over long distances. Some applications might require additional compensation or temperature-stabilized sensors.
Q&A Section
Q: Can the Omron E3K-R10K4 sensor detect both reflective and transparent objects?
A: The E3K-R10K4 sensor is effective at detecting opaque objects, but it may have reduced performance with transparent objects. Transparent or highly reflective materials may require a sensor specifically designed for those materials, as the performance in such cases might be compromised, especially over longer distances.
Q: How do I choose between diffuse, retro-reflective, and through-beam modes?
A: The choice between these modes depends on your application:
- Diffuse mode is suitable for detecting objects that reflect light back toward the sensor. It works well for detecting solid, non-reflective objects.
- Retro-reflective mode is ideal when you need a longer detection range and an easy setup with minimal alignment.
- Through-beam mode is perfect for applications where you need a clear break in the light beam to detect an object passing through it, providing maximum accuracy and sensitivity over long distances.
Q: Can this sensor be used in food processing environments?
A: Yes, the IP67 rating ensures that the E3K-R10K4 can be used in environments with dust or water exposure, which is common in food processing environments. However, you should ensure that the sensor is not exposed to harsh chemicals or extreme temperatures, as these could impact its performance.
Q: Can I use the Omron E3K-R10K4 in outdoor applications?
A: Yes, the E3K-R10K4 is rated for outdoor use as long as it is not exposed to extreme environmental conditions (like heavy rain, high winds, or extreme temperature fluctuations). Its IP67 rating means it can withstand exposure to dust and water, but additional protection may be required in extremely harsh outdoor settings.
Q: Is this sensor compatible with modern control systems?
A: The E3K-R10K4 can be easily integrated into most industrial automation systems that use traditional analog outputs. However, for systems requiring digital communication (e.g., IO-Link, EtherCAT), you might need a different sensor that offers digital output for seamless integration.
Q: What is the maximum distance at which the sensor can detect objects?
A: The E3K-R10K4 has a maximum detection range of up to 10 meters under optimal conditions. However, the effective range will depend on the size, reflectivity, and material of the object being detected. Highly reflective objects may be detected at greater distances.
