Description

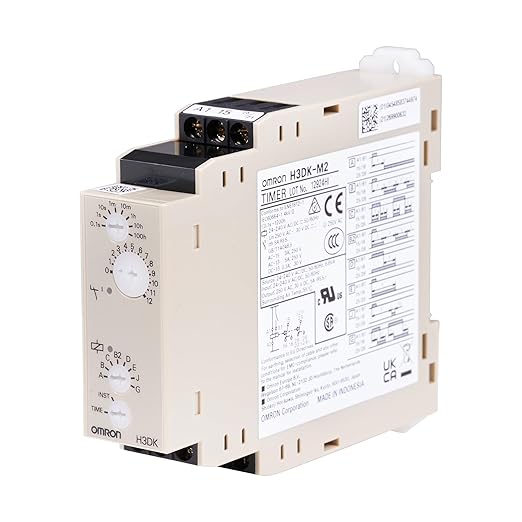

The Omron H3DK-M2 is a versatile multifunction timer from Omron’s H3DK Series, offering a broad range of timing functions suited for industrial automation and control. This DIN rail-mounted timer provides 8 selectable modes, supports 24-240 VAC/DC voltage input, and offers DPDT contacts. It is designed for high reliability and flexibility, making it ideal for a variety of industrial and automation applications.

---

Pros of the Omron H3DK-M2 Timer

1. Wide Voltage Compatibility (24-240 VAC/DC):
   • The H3DK-M2 can handle both AC and DC voltage inputs, with a wide operating voltage range from 24V to 240V. This makes it adaptable for various industrial environments where different types of power supplies are used.
2. Eight Selectable Modes:
   • The 8 modes (including ON delay, OFF delay, interval, and pulse timing) allow the timer to be used in a variety of automation and control applications. The flexibility of these modes makes the timer suitable for multiple tasks, such as controlling motor start/stop times, machine cycles, and lighting systems.
3. Compact DIN Rail Mounting:
   • The 22.5mm width and DIN rail mounting allow for easy installation in industrial control panels and electrical racks, saving space and simplifying the wiring and setup of complex systems. DIN rail mounting also makes it easier to integrate the timer into existing panel setups.
4. DPDT (Double Pole Double Throw) Contacts:
   • The DPDT contacts provide the flexibility to control multiple circuits (both NO and NC) simultaneously. This is particularly useful in applications where two separate actions need to be controlled by the same timing function.
5. Wide Time Range (0.1s to 1200 hours):
   • The H3DK-M2 offers a wide time range, from as little as 0.1 seconds up to 1200 hours, making it suitable for both quick tasks (like delays in switching) and long-term operations (like periodic cycles or time-based controls).
6. High Precision and Reliability:
   • Omron’s H3DK Series timers are known for high precision and reliability. The H3DK-M2 provides accurate timing, making it a dependable component in industrial automation systems where timing accuracy is critical for process control.
7. Durability for Harsh Environments:
   • Built to endure the challenges of industrial environments, the H3DK-M2 timer is highly durable and can withstand the shocks, vibrations, and temperature fluctuations common in industrial settings.
8. Easy Configuration:
   • With simple adjustment methods, such as dip switches or manual setting for time and mode, the H3DK-M2 is relatively easy to configure, even for complex applications. Users don’t need advanced programming knowledge to set it up.

---

Cons of the Omron H3DK-M2 Timer

1. No Built-In Display:
   • The H3DK-M2 does not come with a digital display to show the remaining time or the current status of the timer. This can make monitoring and troubleshooting a bit more challenging, especially when trying to adjust or fine-tune the settings in real time.
2. Limited Digital Communication:
   • Unlike newer models, the H3DK-M2 does not support digital communication protocols like Modbus, Ethernet/IP, or IO-Link. This means it cannot be directly integrated into advanced, digitally networked control systems. For more connected and digital applications, a more advanced timer or controller may be required.
3. Mechanical Relays (Wear and Tear):
   • The DPDT relays are mechanical, which means they can wear out over time with frequent switching. In high-cycle applications, mechanical relays may have a limited lifespan compared to solid-state relays. This could lead to maintenance costs and potential downtime.
4. Complex Setup for New Users:
   • While the H3DK-M2 is flexible with its modes and timing range, the initial setup can be tricky for users who are not familiar with the multifunction timers. The multiple settings and mode options can be overwhelming, especially for beginners without prior experience in using industrial timers.
5. Not Suitable for High-Speed Switching:
   • The timer is best suited for standard timing tasks but is not designed for high-speed switching or applications requiring extremely fast switching times. For applications requiring microsecond precision or ultra-fast response times, other solutions might be more appropriate.
6. No Power-Fail Protection:
   • The H3DK-M2 does not include built-in power-fail recovery features. If there’s a power interruption, the timer may reset, and the timing will be lost, potentially affecting the operation of your system. In critical systems, an additional backup or fail-safe mechanism may be necessary.
7. Fixed Relay Output (No Programmable Logic):
   • The timer is limited to relay output, meaning that for more advanced control and feedback, you would need to pair it with other devices. If you require programmable logic or intelligent control features, the H3DK-M2 does not offer those capabilities on its own.

---

Q&A Section

Q: Can the Omron H3DK-M2 be used for controlling motors in an industrial environment?
A: Yes, the H3DK-M2 can be used for motor control, especially in delayed start or stop applications. Its ON delay or OFF delay modes are suitable for controlling motors by introducing a time delay before switching the motor on or off. However, if your application requires very precise speed or position control, you might need more advanced controllers.

Q: How do I configure the timing settings on the H3DK-M2?
A: The H3DK-M2 has manual settings for both time and mode selection. It uses dip switches for easy configuration. Simply select the mode you need (e.g., ON delay, OFF delay, interval) and adjust the timing range using the dip switches or controls on the timer. The process is relatively simple but requires some familiarity with the different modes.

Q: Can the H3DK-M2 be used in outdoor environments?
A: The H3DK-M2 is designed for industrial applications, but you should consider its environmental protection level and location. If exposed to extreme weather conditions (e.g., heavy rain, high humidity, or dust), you may need to install it in a protected enclosure. It is not inherently weatherproof and should be shielded from harsh external conditions.

Q: Can I connect the H3DK-M2 timer to a PLC or automation system?
A: While the H3DK-M2 is an excellent choice for basic automation and control, it lacks digital communication capabilities like Modbus, Ethernet/IP, or IO-Link. For integration with a PLC or advanced automation system, you would need additional components or a more advanced timer with networking support.

Q: What are the key applications for the H3DK-M2 timer?
A: The H3DK-M2 is used in a variety of applications where timing control is necessary, including:

• Motor controls
• Lighting systems
• Cycle timing
• Pump operations
• Alarm systems
• Switching delays in industrial machinery

Q: Is the H3DK-M2 suitable for high-frequency switching applications?
A: The H3DK-M2 is not designed for high-frequency switching applications due to its mechanical relay contacts. If you require rapid or continuous switching, you may want to consider solid-state relays or other timers that are specifically built for high-cycle environments.

---
