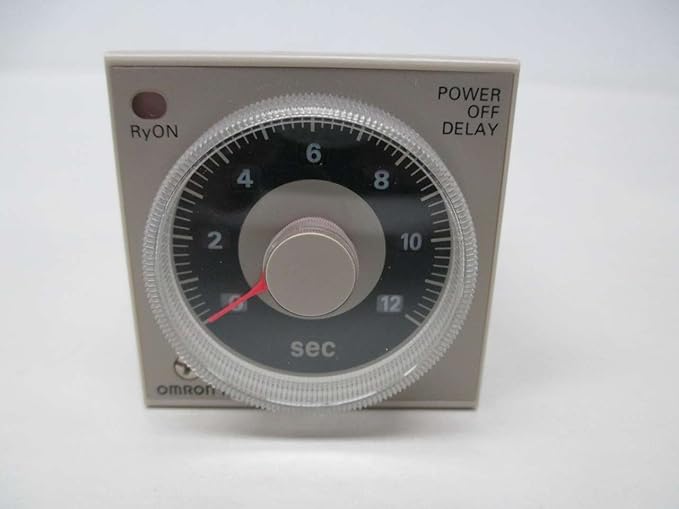

Here’s a complete Pros and Cons Q&A for the Omron H3CR-H8L Timer:

---

🔧 Product Overview:

• Model: Omron H3CR-H8L
• Type: Analog Multi-Function Timer
• Operating Voltage: 110/120 VAC, 50/60 Hz
• Timer Type: Solid-State Timer (high durability)
• Functions: ON-delay (standard type H3CR-H)
• Time Ranges: Typically from 0.05 sec to 300 hours (adjustable via rotary switch)
• Mounting Style: Panel Mount (1/16 DIN – 48×48 mm)
• Output: Usually SPDT or DPDT relay output
• Indicators: Power and Output LEDs

---

✅ Pros:

1. Highly Reliable & Durable (Solid-State Design)
   • Long operational life with no mechanical parts in timing circuit—minimizes wear over time.
2. Wide Time Range with Easy Adjustment
   • Offers multiple time ranges from fractions of a second to hundreds of hours—selected using a rotary switch for flexible applications.
3. Compact Panel Mounting (48 × 48 mm)
   • Standardized DIN size makes it ideal for control panels, with minimal space requirements.
4. Simple to Use
   • Analog dial and switches make setting time quick and intuitive, no programming or menus required.
5. Clear Status Indicators
   • Built-in LED indicators for power and output status provide clear, at-a-glance diagnostics.
6. High Accuracy & Repeatability
   • Offers stable timing with minimal deviation, important in precision control processes.
7. Versatile Voltage Compatibility
   • Runs on standard 110/120 VAC power, suitable for North American and other markets using that voltage range.
8. Trusted Omron Quality
   • The H3CR series is a proven, long-standing family of timers used globally in industrial automation, known for reliability and long service life.

---

❌ Cons:

1. Analog Control Only – No Digital Interface
   • Lacks digital accuracy, programmability, or remote configuration—less flexible than digital timers.
2. No Communication Ports
   • Cannot be monitored or adjusted via PLC, PC, or HMI—standalone use only.
3. Single Timing Function (ON-Delay Only)
   • This specific model (H3CR-H8L) is limited to ON-delay; for more functions (e.g. OFF-delay, interval, etc.), you’d need a multi-function timer variant.
4. Limited Output Types
   • Typically offers relay output only, not suitable for high-speed switching or logic-level signal control without external interfacing.
5. Manual Adjustment Can Be Inaccurate
   • Analog dial setting can be less precise, especially at low time settings (e.g., under 1 second).
6. No Built-in Memory Backup
   • In case of power failure, the timer resets—not suitable for applications needing state retention after power loss.

---

❓ Q&A – Practical Use Considerations

Q1: What timing function does this model offer?
🔹 The H3CR-H8L is typically an ON-delay timer, meaning the output activates after the set delay time once power is applied.

---

Q2: Can I use it for a 120V AC control panel?
🔹 Yes—it’s designed to operate directly on 110/120 VAC, 50/60 Hz. Ideal for North American panels.

---

Q3: Does it have multiple time ranges?
🔹 Yes—it typically supports 6 to 10 selectable ranges (e.g., 0.05s to 300h), adjustable using a rotary selector on the front panel.

---

Q4: Can it be replaced with a digital timer?
🔹 Yes—digital timers like Omron’s H5CX or E5DC series offer more features (accuracy, multi-function, communication), but may cost more and require programming.

---

Q5: Is it DIN-rail mountable?
🔹 Not directly. It’s a panel-mount timer, but with an optional socket or mounting bracket, it can be adapted to DIN rail.

---

🧩 Ideal Applications:

• Motor start delays
• Lighting delays
• HVAC control sequences
• Industrial equipment warm-up timers
• Sequential control in automated systems
• Simple delay logic in machines

---

✅ Summary:

The Omron H3CR-H8L is a reliable, analog ON-delay timer built for simple, rugged timing control in industrial automation and machinery. With easy setup, long life, and wide timing flexibility, it’s a solid choice for non-digital environments where reliability and simplicity are key.

However, it’s limited in terms of functions, accuracy, and connectivity, so if you need multi-function timing, networking, or precise control, consider a digital alternative.

---
