Description

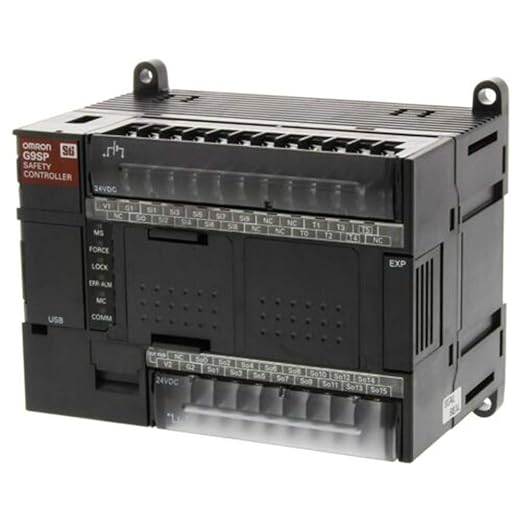

Here’s a pros and cons Q&A for the OMRON G9SP-N20S (342715) — a Compact Stand-Alone Programmable Machine Safety Controller with 20 inputs, 8 solid-state (SSR) outputs, and 24 VDC operation, from Omron Automation and Safety.
✅ Pros
Q: What are the advantages of using the G9SP-N20S for safety applications?
A:
- Programmable Flexibility: Allows custom safety logic without needing a full PLC-based safety system.
- Compact Design: Saves panel space while delivering strong safety functionality.
- Integrated Safety I/O: 20 inputs and 8 SSR outputs eliminate the need for separate safety relays in many applications.
- Fast Response Time: Solid-state outputs enable faster switching compared to mechanical relays.
- Easy Configuration: Uses Omron’s graphical programming software (G9SP Configurator), reducing complexity.
- Scalable: Suitable for small to mid-sized machines with multiple safety devices.
- Built-In Diagnostics: Provides detailed status and fault information, aiding troubleshooting.
- Reliable Brand Support: Backed by Omron’s global support and documentation.
❌ Cons
Q: Are there any limitations to be aware of when choosing the G9SP-N20S?
A:
- Not Network-Compatible (No Ethernet/IP or PROFIBUS): This base model doesn’t include industrial network communications—manual wiring may be needed.
- SSR Outputs Only: While fast, solid-state relays can’t directly switch high-current loads like contactors—external relays may be required.
- No Expandability: The G9SP series is fixed in I/O—can’t add more I/O modules later.
- Dedicated Programming Software Required: Must use Omron’s specific G9SP Configurator (Windows-only).
- Learning Curve: Graphical programming is intuitive, but still requires safety system knowledge.
🧠 Q&A Wrap-Up
Q: Is the G9SP-N20S suitable for small standalone machines?
A: Yes. It’s ideal for standalone or semi-complex machines that need comprehensive safety control without a full PLC.
Q: Can it be used in SIL or PL-rated systems?
A: Yes. It complies with international safety standards (SIL3 / PLe), assuming proper system design.
Q: Do I need external relays for motor control?
A: Likely yes. The SSR outputs are designed for signaling or controlling external devices—not for direct motor or high-load switching.
Q: Is programming it similar to PLC ladder logic?
A: No, it uses a function block diagram style in the G9SP Configurator, which is graphical and safety-focused.
Q: How does it compare to a traditional safety relay system?
A: It’s far more flexible and scalable for complex safety requirements, reducing wiring and simplifying logic control.
Let me know if you want to compare this to a safety PLC or a different G9SP model (like G9SP-N10S or G9SP-N30D).
