Description

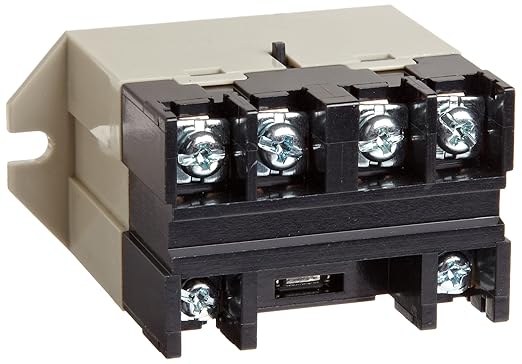

Here’s an overview of the Omron G7L-2A-BUBJ-CB-DC24, a General Purpose Relay designed for use in various industrial automation systems. This relay is widely used in applications requiring reliable switching and control functions.

---

✅ Pros

1. General-Purpose Use

• Versatile and well-suited for a wide range of automation applications, including control panels, industrial machines, and HVAC systems.

2. Test Button

• Features a built-in test button that allows for easy operation checks, helping with troubleshooting and ensuring the relay is working properly.

3. Class B Insulation

• Class B insulation rating, which provides thermal stability for continuous operation at up to 130°C (266°F).

4. Double Pole Single Throw (DPST) Configuration

• Offers 2 contacts (DP) that can control two different circuits simultaneously, with single throw (ST) for each circuit, enhancing flexibility for control tasks.

5. DC24 Control Voltage

• Designed for use with a 24V DC control circuit, which is a common voltage level in many automation and control systems.

6. Screw Terminal Connections

• Screw terminals for easy wiring and reliable connections, especially beneficial for high-vibration environments or industrial control panels.

7. Bracket Mounting

• Mounts easily with an upper bracket, offering secure installation on a panel or within a system for durability and stability.

---

❌ Cons

1. Limited to 24V DC Control

• Not suitable for systems that require AC control voltages or other DC voltage levels, limiting its versatility.

2. Relatively Low Switching Capacity

• May not be suitable for high-power applications, as its current handling and switching capabilities are generally lower than dedicated power relays.

3. Single Throw Design

• While convenient for many tasks, the single throw design limits the relay to either a normally open or normally closed configuration per pole, which may not be flexible enough for some complex switching applications.

4. No Auxiliary Contacts

• Lacks additional auxiliary contacts for monitoring or feedback purposes. Other relays may offer more options for providing system status or integrating into more complex safety circuits.

5. No Built-In Protection

• Lacks built-in protection mechanisms like overload or short-circuit protection, so additional external components (fuses, circuit breakers) may be needed for added safety.

---

💬 Q&A

Q: Can I use this relay for AC applications?

A: No, this relay is designed for DC control circuits (24V DC). For AC applications, you’d need a relay designed specifically for AC voltages, like Omron’s G2R series.

---

Q: Does it have a feedback or indicator light to show if the relay is energized?

A: No, the G7L-2A-BUBJ-CB does not have any built-in indicator lights or feedback contacts. It relies on the physical test button for basic troubleshooting.

---

Q: How reliable is this relay for long-term use?

A: With Class B insulation and a high mechanical life, this relay is quite reliable for general-purpose applications, especially in industrial environments. However, it’s still recommended to periodically test it, especially in critical applications.

---

Q: What types of applications is this relay best suited for?

A: This relay works well in control circuits for machines, HVAC systems, alarms, and other automation systems that require DPST switching. It’s especially useful for applications with 24V DC control systems.

---

Q: Can this relay handle high inrush currents, like motors or inductive loads?

A: While it can handle typical general-purpose loads, it is not ideal for high inrush currents or inductive loads like motors or solenoids. A relay designed for inductive load switching would be more appropriate.

---
