Description

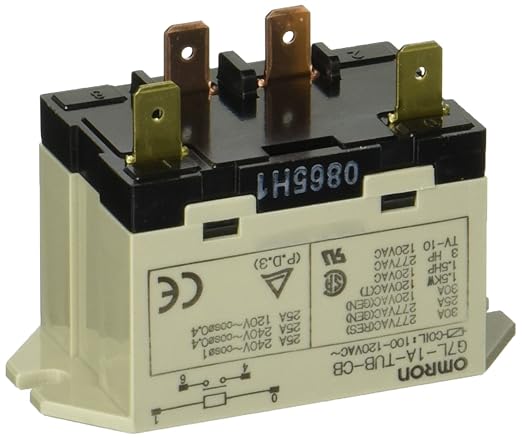

The Omron G7L-1A-TUB-CB-AC100/120 is a general-purpose relay designed for industrial automation and control systems. It features SPST-NO contacts, 30A current rating, and operates at 250V AC. The relay is also equipped with Class B insulation, QuickConnect terminals, and upper bracket mounting for easy integration into control panels. This relay is particularly suited for high-current switching applications, including controlling motors, lighting, and heating systems.

---

Pros of the Omron G7L-1A-TUB-CB-AC100/120 Relay

1. High Current Rating (30A):
   • With a 30A current rating, the G7L-1A-TUB-CB-AC100/120 relay is capable of handling high-power loads, making it suitable for industrial machinery, HVAC systems, motor control, and large-scale automation systems.
2. SPST-NO (Single Pole Single Throw, Normally Open) Contacts:
   • The SPST-NO contacts provide reliable switching for applications requiring the opening and closing of a single circuit, typically used for controlling simple devices like motors, lights, and heaters.
   • NO contacts allow the relay to only complete the circuit when it is energized, which is ideal for on-off control functions.
3. Class B Insulation:
   • The Class B insulation ensures the relay can operate reliably in environments where temperature ranges of up to 130°C (266°F) are present. This makes it suitable for use in high-temperature settings like industrial plants, HVAC systems, and motor control panels.
4. QuickConnect Terminal Design:
   • The QuickConnect terminals allow for fast and easy wiring, reducing installation time and making it easier to integrate the relay into existing systems. This feature improves efficiency and reliability during both installation and maintenance.
5. Upper Bracket Mounting:
   • The upper bracket mounting provides a secure and stable installation. It simplifies the mounting process in electrical enclosures or on DIN rails, ensuring the relay stays in place during operations. This makes it easier to organize and position relays in control panels, improving system ergonomics.
6. Versatile Voltage Operation (AC 100-120V):
   • This relay operates at AC100/120V, which is commonly used in many industrial and automation applications, especially in North America. Its wide compatibility ensures it works with standard electrical systems, which is convenient for widespread use.
7. Compact and Durable Design:
   • The compact design of the relay allows for easy integration into control panels where space may be limited, without compromising its strength and reliability.
   • Durability is a key feature of the G7L series, ensuring that the relay can withstand the wear and tear of industrial environments.
8. High Reliability and Long Lifecycle:
   • Omron is known for the reliability of its components. The G7L-1A-TUB-CB is built to handle frequent switching and has a long operational life. This makes it an excellent choice for industries that rely on continuous operations without frequent relay replacements.

---

Cons of the Omron G7L-1A-TUB-CB-AC100/120 Relay

1. Limited Contact Configuration (SPST-NO):
   • The SPST-NO configuration may be limiting for applications that require more complex switching functions (such as DPDT or SPDT relays). If your application needs to control multiple circuits simultaneously or requires both normally open and normally closed contacts, this relay may not be the ideal choice.
2. AC Voltage Only (No DC Operation):
   • The G7L-1A-TUB-CB-AC100/120 relay is designed for AC operation only (100/120V AC). It cannot be used for DC-based circuits, limiting its flexibility in applications that require DC voltage control.
3. Mechanical Wear Over Time:
   • As with most mechanical relays, the G7L-1A-TUB-CB is subject to mechanical wear due to frequent switching cycles. While durable, the contacts may degrade after extensive use, especially in high-frequency switching applications. In such cases, a solid-state relay (SSR) could be a more appropriate solution for longer lifespan and fewer maintenance requirements.
4. No Integrated Feedback or Monitoring:
   • The G7L-1A-TUB-CB relay does not include any built-in diagnostic or feedback capabilities. If your system requires real-time monitoring, health diagnostics, or feedback loops for control, you would need to pair this relay with other devices or incorporate external monitoring components.
5. Not Ideal for Fast Switching:
   • The relay may not be suitable for applications requiring fast switching speeds, as mechanical relays tend to have slower response times compared to solid-state relays. If you need to switch loads rapidly (e.g., in high-frequency control applications), this relay may not meet your needs.
6. Higher Power Consumption Compared to Solid-State Relays:
   • Mechanical relays, like the G7L-1A-TUB-CB, generally consume more power for operation (especially when energized) compared to solid-state relays (SSRs), which can operate more efficiently with lower power consumption in certain applications.
7. Limited Protection Features:
   • While it has good Class B insulation, the G7L-1A-TUB-CB lacks built-in overcurrent protection, short-circuit protection, or surge suppression. In harsh environments where such protection is critical, additional external components may be necessary to prevent damage to the relay or connected equipment.

---

Q&A Section

Q: Can the Omron G7L-1A-TUB-CB relay be used for both AC and DC applications?
A: No, the G7L-1A-TUB-CB relay is specifically designed for AC voltage applications only (100/120V AC). It cannot be used in DC circuits. If you need a relay for DC applications, you should consider an appropriate DC relay.

Q: How does the Omron G7L-1A-TUB-CB compare to solid-state relays?
A: The G7L-1A-TUB-CB is a mechanical relay, which means it involves physical moving parts for switching. While it’s reliable and robust for many industrial uses, it is slower than a solid-state relay (SSR) and will experience wear over time. SSRs have no moving parts and are better suited for high-frequency switching or environments that require minimal maintenance.

Q: What type of applications is the G7L-1A-TUB-CB most suited for?
A: The G7L-1A-TUB-CB is ideal for general-purpose high-current switching applications. It is commonly used in motor control circuits, lighting systems, heating control, HVAC systems, and other industrial control systems where reliable, high-current switching is needed.

Q: How do I wire the Omron G7L-1A-TUB-CB relay?
A: The QuickConnect terminals make wiring straightforward. You’ll simply connect the input control signal to the coil terminals and wire your high-power load to the NO (Normally Open) contact terminals. Ensure that the relay is installed securely using the upper bracket mounting and that the voltage ratings are adhered to.

Q: What is the lifespan of the Omron G7L-1A-TUB-CB relay?
A: The G7L-1A-TUB-CB is designed for long-term reliability and can handle numerous switching cycles, but like all mechanical relays, its lifespan depends on the frequency of use. High-frequency switching may lead to contact wear, reducing the lifespan. In applications with low switching frequency, it can last for many years.

Q: Can this relay be used in a control panel with limited space?
A: Yes, the compact size (22.5mm wide) and DIN rail mounting make the G7L-1A-TUB-CB suitable for control panels with limited space. The QuickConnect terminals further simplify installation in tight spaces.

---
