Description

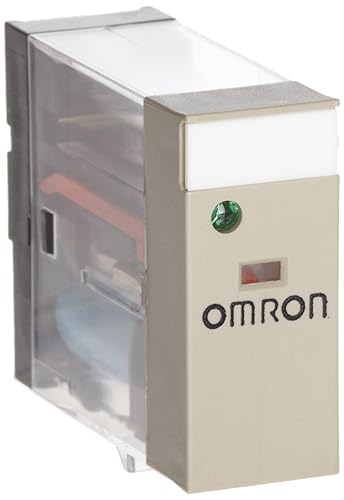

The Omron G2R-2-SND DC24(S) is a general-purpose relay with LED indicator and diode, designed for use in a wide range of automation and control applications. Here’s a breakdown of the pros and cons in a Q&A format:

Pros:

1. LED Indicator for Visual Feedback:
   • Q: What’s the advantage of having an LED indicator on the relay?
   • A: The LED indicator provides immediate visual feedback, letting you know the relay’s status (whether it is energized or de-energized) at a glance. This helps in troubleshooting and monitoring the system in real-time.
2. Diode Protection:
   • Q: Does the diode in this relay offer any benefits?
   • A: Yes, the built-in diode offers flyback protection, which protects the relay from voltage spikes when switching inductive loads (such as motors or solenoids), improving the longevity and reliability of your circuit.
3. Double Pole Double Throw (DPDT) Contacts:
   • Q: How versatile are the contact configurations?
   • A: The DPDT (Double Pole Double Throw) contact configuration provides flexibility for controlling multiple circuits or devices simultaneously with just one relay. This is particularly useful in applications where switching between different paths or devices is necessary.
4. Rated Load Current and Voltage:
   • Q: Is this relay suitable for various loads?
   • A: With a rated load current of 21.6mA and a rated load voltage of 24 VDC, the G2R-2-SND is ideal for controlling low to medium-power DC circuits. It’s well-suited for automation systems with low voltage and current requirements.
5. Plug-In Terminals for Easy Wiring:
   • Q: Is it easy to install and wire?
   • A: Yes, the plug-in terminals allow for easy wiring and quick installation, saving time and making maintenance simpler. This is especially helpful when replacing or reconfiguring relays in existing systems.
6. Durable and Reliable:
   • Q: Is this relay built to last?
   • A: Yes, the G2R-2-SND is designed for long-term reliability, with a solid build that can withstand industrial environments. It’s ideal for applications where consistent performance is required over time.

Cons:

1. Limited Current Handling (21.6mA Rated Current):
   • Q: Can this relay handle high-power applications?
   • A: The 21.6mA rated load current is relatively low, meaning this relay is not suitable for high-power or heavy-duty applications. If you need to control larger currents, you would need a relay with a higher current rating.
2. DC Voltage Limitation (24 VDC):
   • Q: Is this relay versatile with other voltages?
   • A: This relay is rated for 24 VDC, so it is not compatible with AC voltages or higher DC voltages. For applications that require AC control or higher DC voltages, you’d need a different relay model with a broader voltage range.
3. Not Designed for High-Frequency Switching:
   • Q: Can this relay handle high-frequency switching?
   • A: The G2R-2-SND is designed for general-purpose use and is not optimized for high-frequency switching. If your application requires rapid or continuous switching, a specialized relay designed for high-frequency use might be needed.
4. Limited Contact Configuration Options:
   • Q: Can I use this relay for all types of switching applications?
   • A: The DPDT configuration is versatile, but if you need more complex configurations (such as normally closed or normally open setups in a specific arrangement), this relay might not offer enough variety. For more specific needs, you might need a different relay type.
5. No Built-in Fail-Safe Mechanism:
   • Q: Does this relay offer built-in fail-safe features?
   • A: The relay does not have any built-in fail-safe mechanisms. In safety-critical applications, you would need to implement additional protective components or use a relay with fail-safe capabilities to ensure system integrity during faults.

Conclusion:

The Omron G2R-2-SND DC24(S) general-purpose relay is an excellent choice for controlling low to medium-power DC circuits, with convenient features like the LED indicator and built-in diode protection. It’s particularly suited for applications that require flexibility in switching and easy integration, thanks to the plug-in terminals. However, its low current capacity (21.6mA), limited voltage range (24 VDC), and lack of fail-safe features mean it’s not suitable for high-power, high-voltage, or high-frequency applications. For basic automation, control, and switching tasks within its specified limits, it is a reliable and cost-effective solution.
