Description

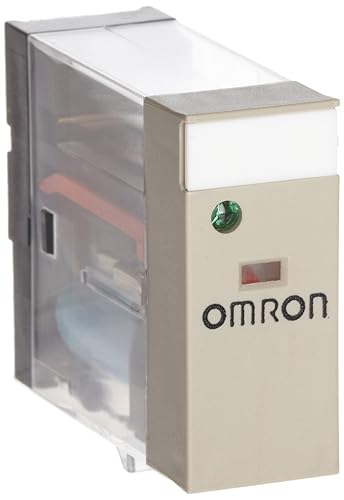

The Omron G2R-1-SND DC24(S) is a general-purpose relay with an integrated LED indicator and a diode, designed for use in control circuits, automation, and industrial applications. It features plug-in terminals and provides single-pole double-throw (SPDT) contacts, making it highly versatile for switching and control tasks.
✅ Pros
1. Integrated LED Indicator
- The LED indicator provides a visual cue to show when the relay is energized, which simplifies troubleshooting and monitoring, especially in complex control systems.
2. Built-in Diode for Protection
- The diode protects the relay’s coil circuit by suppressing voltage spikes caused by inductive loads (like motors or solenoids), preventing damage to the relay and connected components.
3. SPDT Contacts for Versatility
- The single-pole double-throw (SPDT) configuration allows the relay to control two independent circuits or switch between two different states, offering more flexibility in design.
4. Compact and Easy to Install
- Plug-in terminals make installation quick and simple, reducing wiring time and allowing for easy replacement or maintenance. The compact design fits into smaller spaces in control panels.
5. Wide Voltage Range (24 VDC)
- The relay is rated for 24 VDC, which is common in many industrial control systems and automation equipment, making it compatible with a broad range of applications.
6. Reliable Performance
- The G2R-1-SND relay is known for durability and longevity, making it a reliable choice for tasks that require consistent and frequent switching cycles.
❌ Cons
1. Limited Load Capacity
- With a 21.6 mA rated load current and a 24 VDC rated voltage, this relay is suitable for low to moderate load switching but may not be ideal for high-power applications or heavy-duty industrial systems requiring higher current ratings.
2. No Overload Protection
- The relay lacks built-in overload protection. If used in high-load environments, external protection devices, such as fuses or circuit breakers, will be necessary to safeguard the system.
3. Limited to DC Circuits
- This relay is specifically designed for DC (24 V) systems and cannot be used in AC circuits without additional components or different relay configurations.
4. Mechanical Wear Over Time
- As an electromechanical relay, the G2R-1-SND is susceptible to wear and tear over time due to its moving parts (contacts and coil). For high-frequency switching or long-term use, regular inspection and maintenance are required.
5. Current Rating May Be Too Low for Certain Applications
- For applications requiring higher currents (above the rated 21.6 mA), you may need to look for a relay with a higher current rating, as this model is designed for medium- or low-power use.
💬 Q&A
Q: Can I use this relay to control high-power devices?
A: The G2R-1-SND relay is suitable for controlling low to medium-power devices, but it may not be ideal for high-power machinery or systems that require switching larger currents. For higher-power applications, consider relays with higher current ratings or specific power relay models.
Q: Is the LED indicator visible in bright environments?
A: The LED indicator is typically bright enough for most environments, but its visibility could be reduced in extremely bright or direct light conditions. It’s primarily useful in standard industrial environments for visual confirmation that the relay is energized.
Q: What does the diode do, and is it essential?
A: The diode acts as a flyback diode (or freewheeling diode) to protect the relay from voltage spikes generated by inductive loads (like motors or solenoids). It’s essential if you’re switching inductive loads, as it prevents damage to the relay’s contacts and coil from voltage surges.
Q: Can I use this relay for AC circuits?
A: The G2R-1-SND is designed for DC circuits only, with a 24 VDC rating. If you need a relay for AC applications, you’ll need to select a relay designed for AC voltage or use an AC/DC hybrid relay.
Q: Is this relay easy to replace or install?
A: Yes, the plug-in terminals make installation and replacement quick and easy. It’s perfect for applications where you may need to frequently replace or service the relay without complex wiring.
Q: Can I use this relay in an outdoor or harsh environment?
A: The G2R-1-SND is designed for standard indoor industrial use. For harsh outdoor environments, especially those involving extreme temperature fluctuations, moisture, or dirt, you may need additional protective housing or enclosures to ensure the relay remains functional and safe.
