Here’s a detailed Pros and Cons Q&A for the OMRON E6C2-CWZ1X 1200P/R 2M 5VDC incremental rotary encoder:
🔧 Product Overview:

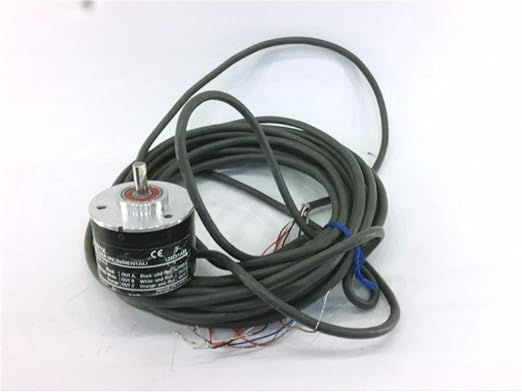

- Model: E6C2-CWZ1X-1200P/R-2M
- Type: Incremental Rotary Encoder
- Resolution: 1200 pulses per revolution (P/R)
- Output: ABZ + Complementary (A, B, Z, /A, /B, /Z)
- Line Driver: 5VDC, differential output (RS-422 compatible)
- Cable Length: 2 meters
- Mounting Style: Shaft type with flange
- Use Case: Position and speed detection for motors, conveyors, and automation systems
✅ Pros:
- High Resolution (1200 P/R)
- Offers fine position and speed control, making it suitable for precise automation tasks like CNC, robotics, and high-speed motor feedback.
- ABZ + Complementary Outputs
- Provides quadrature outputs (A, B) and index (Z) for precise pulse counting and direction detection.
- Complementary signals (/A, /B, /Z) support differential (line driver) communication, which ensures noise immunity—ideal for industrial environments with electrical interference.
- Line Driver Output (RS-422 Compatible)
- Excellent for long cable runs and high-speed signal transmission.
- Helps prevent signal degradation over distance, common in factory automation setups.
- Compact and Robust Design
- Standard 50 mm diameter makes it a drop-in replacement for many systems.
- Built with rugged materials, suitable for continuous operation in industrial settings.
- Wide Application Compatibility
- Interfaces easily with PLC counters, motion controllers, and servo systems.
- Commonly used in packaging, conveyor systems, machine tools, and elevators.
- Index (Z-phase) Signal
- One pulse per revolution that enables homing or zero-point detection—critical for systems that require exact positioning references.
- OMRON Quality and Reliability
- Backed by OMRON’s reputation for durability and consistent performance in industrial automation.
❌ Cons:
- Fixed Supply Voltage (5VDC Only)
- Requires a regulated 5V power supply. Not directly compatible with 12V or 24V systems without a level shifter or external voltage regulation.
- No Absolute Position Memory
- Being incremental, it doesn’t retain position on power loss. Systems need to home/reset on startup, unlike absolute encoders that retain position information.
- Requires Line Driver-Compatible Controller
- The differential output requires a receiver compatible with RS-422, which might not be standard on all basic PLCs or counters.
- Encoder Shaft Alignment Needed
- Mechanical installation must be precise. Misalignment may cause premature wear or inaccurate feedback.
- Not Sealed for Harsh Environments
- Typically rated IP50–IP64, which may not be suitable for dusty, wet, or outdoor environments unless additional protective housing is used.
- Limited Length of Built-in Cable (2m)
- Fixed cable length may require splicing or extension in larger systems, which can introduce signal issues if not done properly.
❓ Q&A – Common Use Case Questions:
Q1: Can I use this encoder with a 24V PLC?
🔹 Not directly. The encoder operates at 5VDC and uses line driver (RS-422) output. You will need a voltage-level converter or use a controller with compatible input.
Q2: Is this encoder good for speed measurement on a conveyor?
🔹 Yes. With 1200 P/R, it provides high-resolution speed feedback, especially useful when paired with a high-speed counter.
Q3: Can this encoder retain position after power off?
🔹 No. It’s an incremental encoder, so the system must re-home after power loss unless used with a battery backup and memory tracking.
Q4: What’s the advantage of ABZ + Complementary outputs?
🔹 Complementary signals offer better noise immunity, especially over long cables. They are necessary for high-speed, high-reliability systems.
Q5: Is this encoder suitable for high-speed motor feedback?
🔹 Yes. The line driver output supports high-frequency pulse transmission (hundreds of kHz), suitable for fast-moving applications.
🧩 Ideal Applications:
- CNC machinery
- Elevator control systems
- Servo motor feedback
- Automated conveyors
- Robotics
- Industrial printing and labeling machines
✅ Summary:
The OMRON E6C2-CWZ1X 1200P/R 2M 5VDC is a reliable, high-resolution incremental encoder perfect for precise speed and position feedback in industrial automation. With line driver output, ABZ + complementary signals, and robust build quality, it suits demanding environments—if your system can support 5V input and differential signals.
Would you like help comparing this encoder to an absolute encoder or choosing a compatible counter or PLC module?
