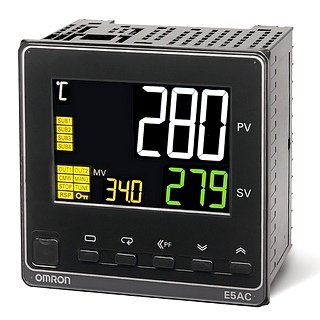

Omron E5AC-QX3ASM-800 Temperature Controller OMRON Automation and Safety

Description

Here’s a detailed Pros and Cons Q&A for the Omron E5AC-QX3ASM-800 Temperature Controller:

---

🔧 Product Overview:

• Model: E5AC-QX3ASM-800
• Type: Digital Temperature Controller (Advanced Series)
• Display: Large white PV display, dual-line LCD (easy-to-read)
• Input Type: Universal input (thermocouple, RTD, voltage, etc.)
• Control Output: Likely relay, voltage pulse, or current (model-dependent)
• Power Supply: Typically 100–240 VAC, confirm for exact variant
• Features:
  • PID control with auto-tuning
  • RS-485 communication (Modbus, CompoWay/F)
  • Advanced alarm functions
  • 48 × 96 mm (1/8 DIN) panel size

---

✅ Pros:

1. Large, High-Visibility Display
   • The white LED display is bright and easy to read from a distance—ideal for industrial panels or low-light environments.
2. Universal Input Flexibility
   • Accepts thermocouples (K, J, T, etc.), RTDs (Pt100), and analog voltage signals. Excellent for multi-application use or future adaptability.
3. Fast and Accurate PID Control
   • Supports auto-tuning and self-tuning PID, ensuring stable, precise temperature regulation—essential in processes like baking, molding, or heat treatment.
4. Multiple Output Options
   • Can support relay, SSR drive (voltage pulse), or current output, depending on configuration. Gives flexibility in matching with heaters, SSRs, or actuators.
5. Built-In RS-485 Communication (Modbus, CompoWay/F)
   • Enables integration into SCADA, PLC, or HMI systems. Supports remote monitoring, parameter setting, and logging.
6. High Reliability for Industrial Use
   • Omron’s E5AC series is designed for 24/7 operation in demanding environments, with solid protection against electrical noise and temperature fluctuations.
7. Advanced Alarm & Control Features
   • Includes deviation alarms, loop break detection, heater burnout alarms, and more—important for safety and process reliability.
8. User-Friendly Interface
   • Navigation keys and structured menus make it relatively easy to configure, even for non-experts.

---

❌ Cons:

1. Requires Configuration Before Use
   • Unlike simpler thermostats, it must be set up correctly (input type, control parameters, outputs). Incorrect setup can cause control failure.
2. No Touchscreen or Graphical UI
   • It’s a button-based interface, which might feel limited compared to newer graphical temperature controllers or PLC HMIs.
3. Limited Digital I/O (unless extended)
   • Out of the box, the controller may only support a few alarms or control signals. For more I/O, you need to integrate external modules or a PLC.
4. Overkill for Simple Applications
   • In very basic heating/cooling tasks, a controller like this may be too feature-rich, adding unnecessary cost and setup time.
5. No Built-in Data Logging
   • While it supports communication, there’s no built-in data memory or logging unless connected to an external system.
6. Communication Setup Can Be Complex
   • RS-485 configuration (Modbus or CompoWay/F) can be non-intuitive, especially without experience with serial protocols.

---

❓ Q&A – Practical Use Considerations

Q1: Can I use this controller for both heating and cooling?
🔹 Yes. It supports heat/cool control logic, with dual outputs (depending on configuration).

---

Q2: Does it work with RTD and thermocouples?
🔹 Yes, it has a universal input. You just need to set the input type during configuration (e.g., Pt100, K-type thermocouple).

---

Q3: Can I connect it to a PLC or HMI?
🔹 Yes, via RS-485 Modbus or CompoWay/F communication. Make sure the PLC supports the same protocol.

---

Q4: Does it support auto-tuning?
🔹 Absolutely. It supports both auto-tuning and adaptive tuning, which helps optimize PID control parameters automatically.

---

Q5: What size panel cutout is required?
🔹 This model is 1/8 DIN (48 mm × 96 mm), a standard industrial size for temperature controllers.

---

🧩 Ideal Applications:

• Plastic injection molding machines
• Ovens, kilns, and furnaces
• HVAC systems
• Packaging machinery
• Food processing and sterilization
• Chemical baths or temperature-sensitive industrial processes

---

✅ Summary:

The Omron E5AC-QX3ASM-800 is a powerful, flexible, and highly accurate temperature controller designed for industrial-grade applications. It offers auto-tuning PID, universal input, and advanced alarm and communication features, making it ideal for demanding environments where precise temperature control is critical.

However, it requires proper setup, may be too advanced for simple tasks, and lacks onboard data logging. It shines in automated process control systems, especially when paired with a PLC or SCADA.

---
