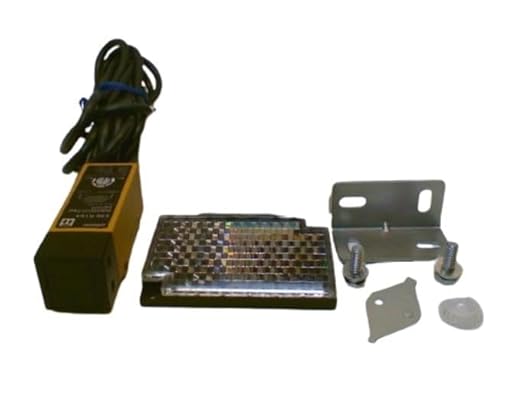

OMRON E3S-R1B4 1 M Sensing Distance, 12-24 VDC, 2 M Cable, Horizontal Mount, Infrared LED, Light-ON/Dark-ON CONFIGURABLE, PHOTOELECTRIC Sensor, PNP Output, RETROREFLECTIVE OMRON Automation and Safety

Description

The Omron E3S-R1B4 is a Photoelectric Sensor with retroreflective sensing, designed for a range of industrial automation and control applications. It utilizes infrared LED technology for object detection and offers flexibility with configurable output settings. The PNP output configuration makes it compatible with a variety of control systems.

Key Specifications:

• Model: E3S-R1B4
• Type: Photoelectric Sensor (Retroreflective)
• Sensing Distance: 1 meter (1000mm)
• Output Type: PNP (Sourcing)
• Voltage Range: 12–24 VDC
• Cable Length: 2 meters
• Mounting Type: Horizontal Mount
• Technology: Infrared LED for sensing
• Switching Mode: Configurable Light-ON/Dark-ON output
• Response Time: High-speed response (typically in milliseconds)
• Detection Type: Retroreflective (requires a retroreflector)
• Environmental Protection: IP67 rated (dustproof and waterproof)
• Operating Temperature Range: -25°C to +55°C

---

Pros:

1. Configurable Output Mode (Light-ON/Dark-ON):
   • The E3S-R1B4 offers flexibility with its Light-ON and Dark-ON modes. This allows the sensor to be customized based on the requirements of the application, whether you need the sensor to trigger when the light is received or when the light is blocked.
2. Retroreflective Technology:
   • The retroreflective sensing method is ideal for detecting objects at a relatively short distance (1 meter) in a controlled environment. This allows for highly accurate detection when combined with a suitable reflector.
3. Compact and Easy Installation:
   • The sensor’s compact design and horizontal mounting capability make it easy to install in tight spaces or along conveyor lines, making it suitable for various industrial systems, particularly where space is limited.
4. PNP Output:
   • PNP output (sourcing) is widely used in industrial automation systems and is compatible with most PLCs and control systems. This allows for easy integration into various setups, especially where PNP outputs are preferred for direct interfacing with control systems.
5. Durable and Weather-Resistant (IP67 Rating):
   • The IP67 rating ensures that the sensor is dustproof and waterproof, making it suitable for use in challenging industrial environments where exposure to moisture, dust, or dirt is common.
6. Infrared LED Technology:
   • The use of infrared LED technology enables the sensor to work reliably in various lighting conditions. Infrared sensors are less prone to interference from ambient light, making them well-suited for environments with fluctuating lighting.
7. Cost-Effective:
   • The E3S-R1B4 is reasonably priced for a retroreflective photoelectric sensor with high-quality features. It’s a good balance between performance and cost, making it ideal for standard industrial applications that need reliable object detection.
8. Long Cable Length (2 Meters):
   • The 2-meter cable gives flexibility in installation, allowing the sensor to be installed further away from the control system or machinery if needed. This is a helpful feature in large machines or conveyor systems where the sensor needs to be positioned away from the main panel.
9. Wide Temperature Range:
   • The sensor can operate in a temperature range from -25°C to +55°C, making it suitable for a wide variety of environments, including those with extreme temperatures (within this range).

---

Cons:

1. Limited Sensing Range (1 Meter):
   • With a 1-meter sensing range, the E3S-R1B4 is limited in terms of detecting objects at longer distances. This may not be suitable for applications that require detection over longer distances or in larger machines or assembly lines.
2. Requires Retroreflector:
   • The retroreflective sensing mode requires the use of a retroreflector (a reflective surface), which adds complexity to the setup. In applications where you cannot easily position a retroreflector, you may need a different type of sensor, such as a diffuse-reflective or through-beam sensor.
3. Not Suitable for Transparent Objects:
   • Like many other photoelectric sensors, the E3S-R1B4 might have difficulty detecting transparent or highly reflective objects. If your application involves transparent materials like glass or clear plastic, this sensor may not offer reliable detection.
4. Single Output Type (PNP Only):
   • The sensor offers PNP output only. If your system requires NPN output (sinking), this sensor may not be compatible without additional interfacing components.
5. Environmental Limitations (IP67):
   • While the IP67 rating is sufficient for indoor environments, the sensor is not designed for environments where it may be exposed to significant water pressure or extreme outdoor conditions. For applications requiring higher levels of protection (such as IP68), this sensor might not be suitable.
6. Possible Sensitivity to Highly Reflective Surfaces:
   • Since the retroreflective sensor works by bouncing light off a reflective surface, it might face difficulty in environments where there are highly reflective surfaces close to the sensor. This could result in false triggers or misdetections.
7. Power Supply Requirements (12-24 VDC):
   • The sensor operates within a 12-24 VDC voltage range, which may not be compatible with all systems. If your system uses higher voltages or AC power, an additional step-down or conversion module will be needed.

---

Questions to Consider:

1. What is the required sensing range for your application?
   • The 1-meter sensing distance is perfect for applications that require close-range detection. If you need longer-range detection, you would need to look for a sensor with a greater sensing distance.
2. Do you have space to install a retroreflector?
   • Since the sensor uses retroreflective sensing, it requires a retroreflector for detection. If your setup doesn’t allow you to easily install a reflector, you might need a diffuse or through-beam sensor instead.
3. Does your system use PNP or NPN outputs?
   • The E3S-R1B4 uses a PNP (sourcing) output. If your system requires an NPN (sinking) output, you’ll need to either convert the signal or select another sensor with NPN output.
4. Is the application in an environment with fluctuating lighting or direct sunlight?
   • The infrared LED makes the sensor resilient to ambient light, but if the environment has extreme lighting conditions (e.g., direct sunlight), you may need to test the sensor’s performance or opt for a different sensor type (like laser or ultrasonic).
5. How important is long-term durability?
   • The IP67 rating provides dustproof and waterproof capabilities, making it suitable for most industrial environments. However, if your application involves harsh conditions, extreme temperatures, or direct exposure to water, consider sensors with higher protection levels.

---

Summary:

The Omron E3S-R1B4 is a highly reliable retroreflective photoelectric sensor with infrared LED technology, perfect for short-range detection tasks in industrial environments. Its 1-meter sensing range, PNP output, and configurable Light-ON/Dark-ON modes make it versatile for various standard automation applications. With an IP67 rating, it is robust and able to withstand dust and moisture, although it’s not suitable for harsh outdoor or high-vibration environments. The requirement for a retroreflector and the relatively short sensing range may limit its use in certain applications, but it is a cost-effective and reliable choice for many industrial systems.

Would you like help with choosing a sensor that offers a longer range or works without a retroreflector? Or do you need advice on integrating this sensor into a specific application?
