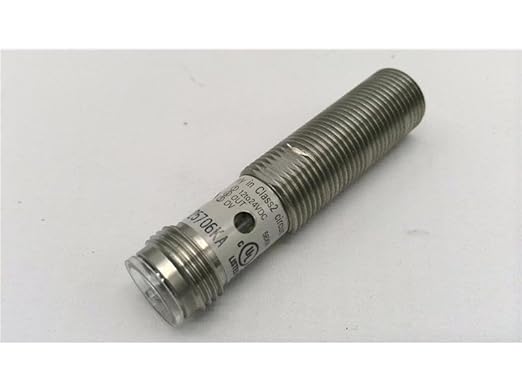

OMRON E2FM-X2B1-M1 100 HZ Response Frequency, 10-30 VDC, 2 MM Sensing Distance, INDUCTIVE, IP67, LED Indicator, M12 Thread Size, PNP, Proximity Sensor, Shielded, SPST-NO OMRON Automation and Safety

Description

The Omron E2FM-X2B1-M1 is an inductive proximity sensor designed for industrial automation and safety applications. It offers shielded sensing for non-contact detection of metal objects, and features PNP output, IP67 protection, and a 100 Hz response frequency. With a 2 mm sensing distance, this sensor is highly suitable for environments where precise, reliable sensing of metal objects is required. The M12 thread size and LED indicator enhance the sensor’s usability and ease of installation.

---

Pros of the Omron E2FM-X2B1-M1 Inductive Proximity Sensor

1. Compact and Robust Design (M12 Thread Size):
   • The M12 thread size allows for easy installation in standard industrial environments, and is highly compatible with other M12 connectors. This compact design ensures it can fit into tight spaces while maintaining reliable performance.
2. IP67 Protection Rating:
   • With an IP67 rating, the E2FM-X2B1-M1 is dust-tight and can withstand submersion in water up to a certain depth, making it ideal for harsh industrial environments that involve exposure to dirt, dust, and water. This makes it highly durable and long-lasting.
3. High Response Frequency (100 Hz):
   • The 100 Hz response frequency means the sensor can detect fast-moving objects with greater precision, making it suitable for high-speed applications where rapid object detection is necessary, such as in automated machinery or conveyor systems.
4. Shielded Sensing:
   • The shielded design prevents the sensor from detecting objects outside the defined sensing area. This reduces false triggers from nearby metal parts or conductive materials, ensuring more accurate and reliable detection.
5. 2 mm Sensing Distance:
   • With a 2 mm sensing distance, this sensor is capable of detecting metal objects in very close proximity, making it useful for precise detection tasks where space is limited or when detecting small metal components.
6. PNP Output (Positive Switching):
   • The PNP output ensures positive switching, which is common in industrial control systems and PLCs. It provides high output reliability, making the sensor easy to interface with other automation equipment like PLCs, relays, and controllers.
7. LED Indicator for Visual Status:
   • The built-in LED indicator provides visual feedback to indicate the operational status of the sensor. This feature simplifies installation, troubleshooting, and maintenance, as it allows you to quickly check whether the sensor is operating as expected.
8. No Physical Contact (Inductive Technology):
   • The inductive technology means the sensor can detect metallic objects without any physical contact, reducing wear and tear and ensuring longer operational life. It also eliminates the need for moving parts, which contributes to the sensor’s reliability.
9. High Durability:
   • The Omron E2FM-X2B1-M1 is built to last, offering resistance to vibration, shock, and ambient temperature extremes, which are common in industrial automation and machine control environments.

---

Cons of the Omron E2FM-X2B1-M1 Inductive Proximity Sensor

1. Limited Sensing Distance (2 mm):
   • With a 2 mm sensing distance, this sensor is best suited for detecting close-proximity metal objects. If you need a sensor for longer-range detection, you may need to consider a sensor with a greater sensing distance (e.g., 5 mm, 10 mm, or more).
2. Limited to Metal Detection:
   • As an inductive sensor, the E2FM-X2B1-M1 can only detect metal objects. If your application involves non-metallic objects (e.g., plastics, wood, or glass), you’ll need to choose a different type of proximity sensor, such as a capacitive or photoelectric sensor.
3. No Analog Output:
   • The E2FM-X2B1-M1 provides a digital output (SPST-NO). If your application requires analog signals (e.g., continuous distance measurement or gradient feedback), this sensor will not be suitable, and you’ll need to opt for a sensor with analog output.
4. Fixed Sensing Distance:
   • The 2 mm sensing distance is fixed and not adjustable. While this is ideal for specific use cases, if you require variable sensing distances for different applications, you may need to explore other sensors that offer adjustable sensing ranges.
5. Not Suitable for High-Temperature or High-Pressure Environments:
   • Although the IP67 rating offers water and dust resistance, the E2FM-X2B1-M1 is not rated for extreme temperatures or high-pressure environments (e.g., for use in clean rooms or areas exposed to high-pressure washdowns). Make sure to check the operating temperature and conditions to ensure compatibility.
6. Non-Sensitive to Non-Metallic Materials:
   • While inductive sensors are great for metal detection, they cannot detect non-metallic materials. If you are working in environments with a mix of materials (both metals and non-metals), you may need to use multiple sensors or a different sensor type altogether.
7. May Require Specific Mounting Considerations:
   • Due to the shielded nature of the sensor, mounting it too close to large metal structures could interfere with its sensing performance. Proper installation guidelines should be followed to ensure optimal detection distance and accuracy.

---

Q&A Section

Q: What types of materials can the Omron E2FM-X2B1-M1 detect?
A: The E2FM-X2B1-M1 is an inductive sensor, which means it can only detect metal objects. It is ideal for detecting ferrous or non-ferrous metals like steel, aluminum, and copper. Non-metallic objects such as plastics or wood cannot be detected by this sensor.

Q: What is the significance of the IP67 rating?
A: The IP67 rating means the sensor is dust-tight (no dust can enter the sensor) and is protected from immersion in water up to 1 meter in depth for a maximum of 30 minutes. This makes the E2FM-X2B1-M1 highly durable and suitable for harsh environments where water, dust, or dirt exposure is common.

Q: Can I use the Omron E2FM-X2B1-M1 sensor for detecting objects at longer distances?
A: The E2FM-X2B1-M1 has a 2 mm sensing distance, which is suitable for very close-range detection. If you need a sensor for longer detection distances (e.g., 5 mm, 10 mm, or more), you will need to choose a sensor with a greater sensing range.

Q: How do I install the Omron E2FM-X2B1-M1?
A: The M12 thread size allows the sensor to be easily screwed into place using compatible M12 connectors. The shielded design means that installation should avoid placing the sensor near large metal surfaces that could interfere with its detection range.

Q: Can I use this sensor with non-Omron PLCs or controllers?
A: Yes, the PNP output of the E2FM-X2B1-M1 is compatible with most standard PLC or control systems that support PNP (positive switching) sensors. It can be used with non-Omron PLCs as long as the controller supports PNP input.

Q: How do I know if the sensor is functioning correctly?
A: The LED indicator on the sensor provides visual feedback to show whether the sensor is active. When the sensor detects a metal object, the LED will typically turn on or flash, indicating the sensor’s operational status.

Q: Is this sensor suitable for high-speed applications?
A: Yes, with a 100 Hz response frequency, the E2FM-X2B1-M1 is suitable for applications where fast detection of metal objects is needed, such as in conveyor systems, robotics, or automated machinery.

---
