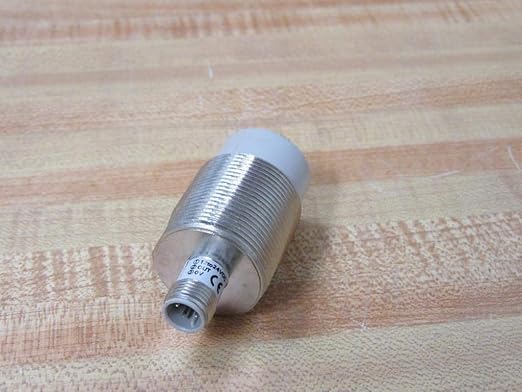

Omron E2E-X18MF2-M1 Proximity Sensor E2EX18MF2M1 OMRON Automation and Safety

Description

The Omron E2E-X18MF2-M1 is an inductive proximity sensor, designed for industrial automation and safety applications. Here’s a breakdown of its key features followed by pros and cons:

Key Specifications:

• Type: Inductive Proximity Sensor
• Size: 18mm (Standard cylindrical M18)
• Detection Range: 2 mm
• Output Type: NPN (Sinking)
• Operating Voltage: 10-30V DC
• Sensing Object: Metal (ferrous and non-ferrous)
• Material: Plastic housing with stainless steel (for durability and resistance)
• Protection: IP67 (dust and water-resistant)
• Response Frequency: 1 kHz
• Temperature Range: -25°C to +70°C
• Applications: Machine automation, object detection, position sensing, safety systems, etc.

---

Pros:

1. Compact and Durable Design:
   • The 18mm cylindrical design (M18) is compact and widely used in various industrial applications. It’s also durable, housed in plastic with stainless steel components to protect against damage from dust, water, or mechanical impact.
2. IP67 Protection:
   • With an IP67 rating, the sensor is resistant to both dust ingress and immersion in water (up to 1 meter for 30 minutes). This makes it ideal for use in harsh environments, including outdoor or wet conditions.
3. Simple Installation:
   • The standard M18 size and a straightforward wiring setup make this sensor easy to install in most systems without complex adjustments.
4. High Response Frequency (1 kHz):
   • With a 1 kHz response frequency, this sensor can detect fast-moving objects or changes, making it suitable for high-speed automation applications where speed is important.
5. Versatile Sensing:
   • It can detect both ferrous (iron-based) and non-ferrous metals, making it versatile for a variety of industrial applications where different types of metals are present.
6. Wide Operating Voltage (10-30V DC):
   • The wide operating voltage range allows for compatibility with most industrial systems, reducing the need for specific power supply configurations.
7. NPN Output (Sinking):
   • The NPN output is suitable for systems where the load is connected to the positive voltage side. It is common in many industrial control systems, offering flexibility in integration.
8. Reliability and Brand Reputation:
   • Omron is a well-established brand in industrial automation, known for manufacturing reliable and high-performance components. This gives confidence in the longevity and performance of the sensor.

---

Cons:

1. Limited Detection Range (2 mm):
   • With a relatively short detection range of 2mm, this sensor is suitable for small objects or applications where precision is more critical. However, it may not be ideal for applications that require a longer range for larger objects.
2. Material Limitations:
   • As an inductive sensor, it only detects metallic objects. It won’t work with non-metallic materials, such as plastics, wood, or glass, which limits its application in certain environments.
3. No Analog Output:
   • The E2E-X18MF2-M1 offers only a digital NPN output. For applications where a continuous measurement (analog signal) is needed to detect the position or proximity of an object, this sensor would not be sufficient.
4. Potential Interference:
   • While the sensor is relatively robust, it could still be prone to interference in environments with heavy electromagnetic noise or in applications where several sensors are used in close proximity.
5. Limited Temperature Range:
   • The sensor operates in a temperature range of -25°C to +70°C. If your application requires operation in more extreme temperatures, you may need a sensor with a broader temperature range.
6. Sensitivity to Installation Orientation:
   • Inductive sensors can be sensitive to installation positioning. If the sensor is not aligned properly with the target object, it may not detect it accurately, requiring careful installation and setup.
7. No Built-In Diagnostics:
   • Unlike some modern sensors that come with diagnostic features (e.g., signal strength or health monitoring), this model lacks advanced feedback features, which could make troubleshooting more difficult in some applications.

---

Questions to Consider:

1. What type of object will you be detecting?
   Since this sensor only detects metal objects, ensure your target materials are compatible (ferrous or non-ferrous metals).
2. Do you need a longer sensing distance?
   If your application requires detecting larger or more distant objects, you might need a sensor with a longer detection range.
3. Is speed a factor in your application?
   If you need to detect rapidly moving objects or signals, the high response frequency (1 kHz) of this sensor is a plus. However, check if your application demands faster response times.
4. Environmental Considerations:
   Consider if the working conditions involve heavy dust, moisture, or high vibrations, which would make the IP67 rating an important feature. If the sensor is exposed to extreme temperatures, you might need a sensor with an extended operating temperature range.
5. Wiring and Integration:
   Since the sensor provides an NPN output, ensure that your control systems (e.g., PLCs) are compatible with this configuration.

---

Summary:

The Omron E2E-X18MF2-M1 is an excellent choice for detecting metal objects in automated systems, offering good durability, a simple installation process, and high-speed detection. It excels in environments with dust and moisture, but its short detection range and lack of analog output may not be suitable for all applications.
