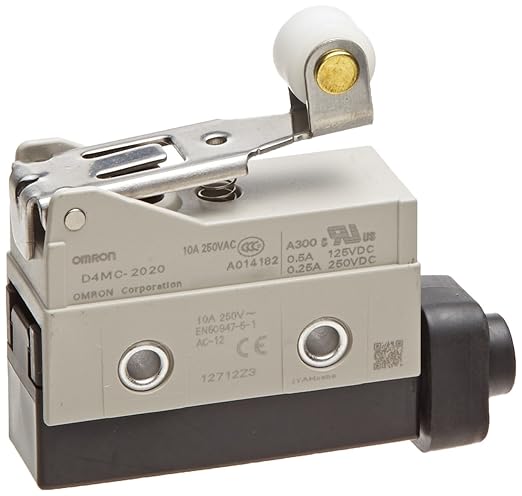

Here’s a detailed Pros and Cons Q&A for the Omron D4MC-2020 High Utility Enclosed Switch with a short hinge roller lever — a durable, economical switch designed for high utility in automation and safety applications.
✅ Pros
1. Enclosed for Environmental Protection
- Built with a protective enclosure (IP67 rated), offering excellent resistance to dust, water, oil, and contaminants.
- Suitable for use in harsh industrial environments.
2. Versatile Roller Lever Actuation
- The short hinge roller lever allows smooth actuation from side-to-side motion or contact with cams or mechanical arms.
- Reduces wear and allows for longer mechanical life even under frequent use.
3. Economical Yet Durable
- Offers a cost-effective solution without compromising on durability or performance.
- Well-suited for general-purpose industrial automation and machinery.
4. High Mechanical & Electrical Life
- Mechanical life: Up to 10 million operations.
- Electrical life: Typically 500,000 operations under rated load conditions.
5. Flexible Mounting & Wiring
- Standardized mounting footprint.
- Features screw terminal connections for secure, easy wiring.
6. Reliable Contact Performance
- Uses snap-action switching for fast, consistent operation with low contact bounce.
- Maintains consistent performance even under frequent cycling.
❌ Cons
1. Larger Physical Size
- Compared to micro or compact switches, the D4MC is relatively bulky, which may be a constraint in tight installations.
2. Limited Sensitivity
- Requires moderate actuation force; not ideal for light-touch or very sensitive triggering applications.
3. Fixed Actuator Type
- The short hinge roller lever may not be suitable for all mechanical setups.
- Unlike modular switch bodies, this model does not support interchangeable actuator heads.
4. Manual Installation
- Like other industrial switches, it requires manual screw wiring and secure mounting, which can slow down assembly lines.
5. No Status Indicator
- Does not include a built-in indicator or LED for switch status — external signal verification required.
❓ Q&A
Q: What is the IP rating for this switch?
A: The D4MC-2020 is rated IP67, meaning it’s dust-tight and protected against temporary immersion in water.
Q: Can I use this switch outdoors?
A: Yes, as long as it is not continuously submerged. Its enclosed design makes it suitable for damp or dusty environments, including outdoor machinery and washdown areas.
Q: What’s the rated load for switching?
A: Typically rated for 10A at 250VAC resistive load. Always check the full load chart for inductive loads like motors or relays.
Q: Is the roller lever replaceable?
A: No, the actuator is integrated. If you need a different lever type, consider other D4MC variants.
Q: What’s the actuation method?
A: The hinge roller lever allows actuation via lateral contact — ideal for cams, gates, sliding mechanisms, or conveyors.
🧾 Summary
| Feature | Rating | Notes |
|---|---|---|
| Environmental Protection | ★★★★★ | Fully enclosed, IP67-rated |
| Durability | ★★★★★ | High mechanical and electrical life |
| Actuation Type | ★★★★☆ | Smooth roller lever, but fixed actuator |
| Sensitivity | ★★★☆☆ | Requires moderate force, not ultra-sensitive |
| Size & Mounting | ★★★★☆ | Sturdy build, but not compact |
| Cost-Effectiveness | ★★★★★ | High value for industrial reliability |
The Omron D4MC-2020 is a tough, economical switch ideal for rugged industrial automation. It’s best used in applications like conveyor position sensing, machine interlocks, or gate detection — especially where durability and environmental resistance are more important than size or sensitivity.
