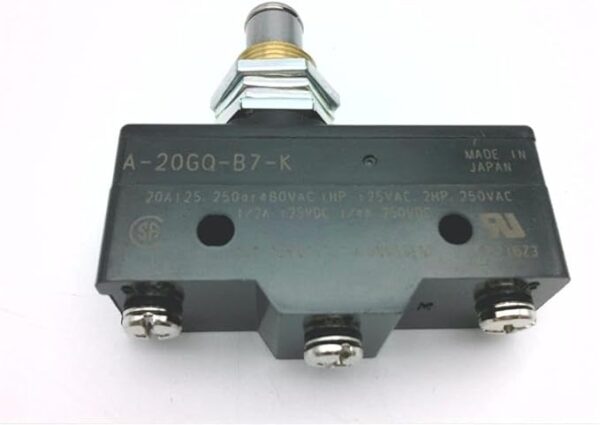

Here’s a detailed overview of the OMRON A-20GQ-B7-K Safety Switch — a rugged, industrial-grade device used primarily for machinery safety and limit detection. This model belongs to Omron’s A-series, known for reliability and adaptability in automation setups.
✅ Pros
1. Rugged Industrial Build
- Designed for tough environments, with a durable plunger mechanism and long mechanical life.
2. Snap-Action Mechanism
- Fast, reliable switching with minimal travel, improving responsiveness and reducing contact wear.
3. SPDT Contact (Single-Pole, Double-Throw)
- Versatile for many control circuit applications, allowing either NO (normally open) or NC (normally closed) configurations.
4. Overtravel Plunger
- Designed with extra actuator travel beyond the operating point to ensure contact stability and reduce false triggering.
5. Panel Mount
- Easy to install in enclosures or control panels, offering good integration flexibility in industrial settings.
6. Screw Terminal Connections
- Simplifies wiring, especially for field replacements or adjustments.
❌ Cons
1. IP00 Ingress Protection
- No protection against dust or liquids; must be mounted inside an enclosure or used in clean environments.
2. Limited to Panel Mounting
- Not suitable for applications needing standalone or external switch housings.
3. Manual Reset Not Available
- Unlike safety-rated switches with reset mechanisms, this is a basic plunger type — not suitable for lockout/tagout or complex safety interlocks.
4. Relatively Low Current Rating
- Rated for 125 VAC / 30 VDC, so not ideal for switching high-power circuits directly.
5. No Auxiliary Contact Option
- Does not offer additional feedback or monitoring contacts, which some safety systems require.
💬 Q&A
Q: What applications is the A-20GQ-B7-K suitable for?
A: It’s best used for limit detection, position sensing, or simple interlock applications within enclosures, machinery panels, or automation systems.
Q: Can I use this in wet or dusty environments?
A: Not directly — with an IP00 rating, it needs to be mounted inside a protective enclosure or control cabinet.
Q: Is it safety-rated for emergency stop or interlock use?
A: No, this model is not a full safety-rated switch with force-guided contacts or reset features — it’s more for auxiliary functions.
Q: What type of actuator does it have?
A: It features an overtravel plunger, ideal for applications where contact reliability is important and some excess travel is expected.
Q: Is it compatible with DC circuits?
A: Yes, it’s rated for 30 VDC, but you should still ensure it fits your system’s current and voltage requirements.
